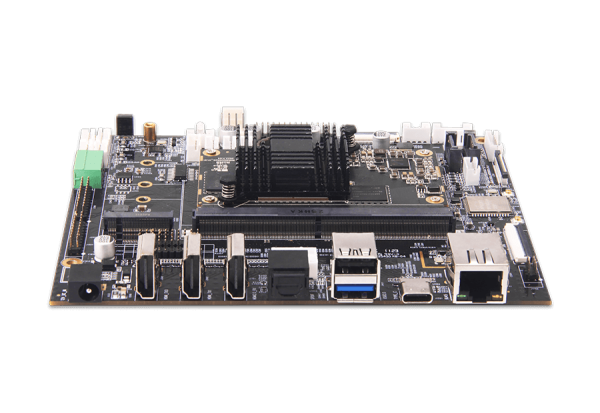

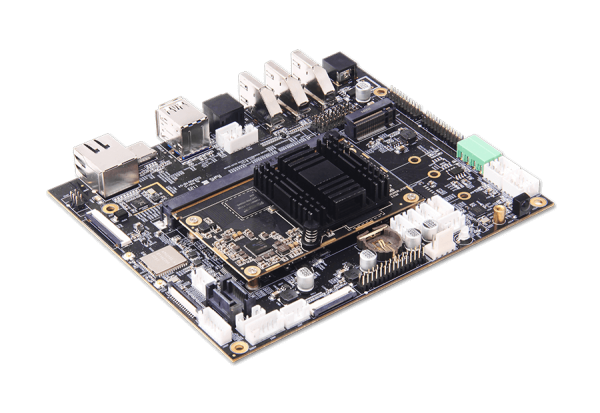

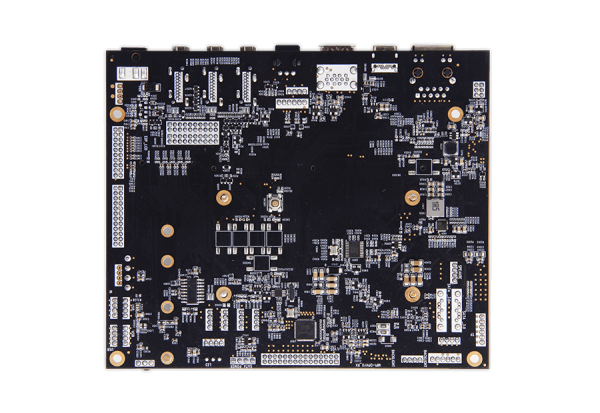

DB3588V2 – RK3588 開発キット

DB3588V2

RK3588 開発キット

Geniatech DB3588V2 AI開発ボードは、RockChip社のRK3588チップと6Tops NPUを搭載し、商用および産業用規格に準拠した設計、10年以上の供給期間、そして包括的な技術情報を提供します。複数のオペレーティングシステムをサポートし、強力なパフォーマンス、安定した信頼性の高い製品サポート、そして様々なAIアプリケーションシナリオに対応する高い拡張性を提供します。

製品概要・特徴

  • RK3588 オクタコア 64ビットプロセッサ(8nm先進プロセス採用、統合型6TOPS NPU搭載)
  • オプションで4~32GB RAM、8~128GB eMMCを搭載可能
  • 8K動画のデコードとエンコード、ギガビットイーサネット、Wi-Fi 6、Bluetooth 5.0に対応
  • 豊富なインターフェース:HDMI®、MIPI、EDP、CAN、RS232、GPIO、USB、M.2、SATA、およびマイクアレイ
  • 広範な温度範囲(-40°C~85°C)に対応
  • 複数のオペレーティングシステムに対応:Android、Debian、Buildroot、およびRTLinux
  • 包括的な技術データ(ベースボード設計データ、API、SDKを含む)

スペック情報

CPU RockChip RK3588
Octa-core 64-bit 4 x Cortex-A76 + 4 x Cortex-A55 8nm advanced process, up to 2.4GHz
GPU Mali-G610 MP4 quad-core GPU
OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.2, 450 GFLOPS
NPU NPU computing power up to 6TOPS, support INT4/INT8/INT16 mixed computing
Network model conversion based on TensorFlow/MXNet/Pytorch/Caffe and other frameworks
ISP Integrated 48MP ISP and HDR & 3DNR multi-algorithm gas pedal
Codecs Video decoding;
8K@60fps H.265/VP9/AVS2
8K@30fps H.264 AVC/MVC
4K@60fps AV1
1080P@60fps MPEG-2/-1/VC-1/VP8
Video encoding;
8K@30fps encoding, H.265 / H.264 support
* Up to 32 channels 1080P@30fps decoding and 16 channels 1080P@30fps encoding
RAM 4GB LPDDR4(8/16/32G optional)
Storage 32GB eMMC(8GB/16GB/64G/128G/256G optional)
Network Ethernet Interface: 1 x 1000/100/10 Mbps transmission speed
WiFi: Support 2.4GHz, 5GHz dual-band WiFi6,802.11 a/b/g/n/ac/ax protocol
BT: Supports Bluetooth 5.0 wireless technology
Video Output HDMI® output: 2 x HDMI®2.1 8K@60fps or 4K@120fps
MIPI output: 1 x MIPI DPHY
EDP Output: 1 x 4K@60fps
LCD backlight power supply: 1 x 3.3V/5V/12V
Video Input HDMI® input: 1 x HDMI®2.0 4K@60fps
MIPI camera input: 1 x MIPI CSI
OS Android 12.0,  Debian 11.0, Buildroot, RTLinux
USB 1 x USB Host3.0, 1 x USB Host2.0 , 1 x TypeC USB OTG 2.0 support up to 480 Mbps, 4 x USB Host2.0
I/O Interface • M.2 KEY M × 1
• CAN × 1
• I2C × 2
• SPI × 1
• Standard SATA × 2
• large 4P power supply holder (+5V and +12V) × 1
• RS232 × • Microphone Array × 1
• left and right stereo sound output 2P row seat
• LED Power supply × 1
Extended I/O interface • 1 × RTC battery holder
• 1 × DC 12V voltage input
• 1 × IR remote control receiver
• 1 × set of GPIO interfaces
• 1 × Upgrade button
• 2 × WiFi/BT antenna connector
POWER DC input voltage 12V (DC5.5 × 2.1mm)
Mechanical Characteristics Size(mm): 150 × 125 × 20
Board Structure: Core Board + Carrier Board
Operating temperature Commercial: 0~80°C
Work gauge: -40~85°C
