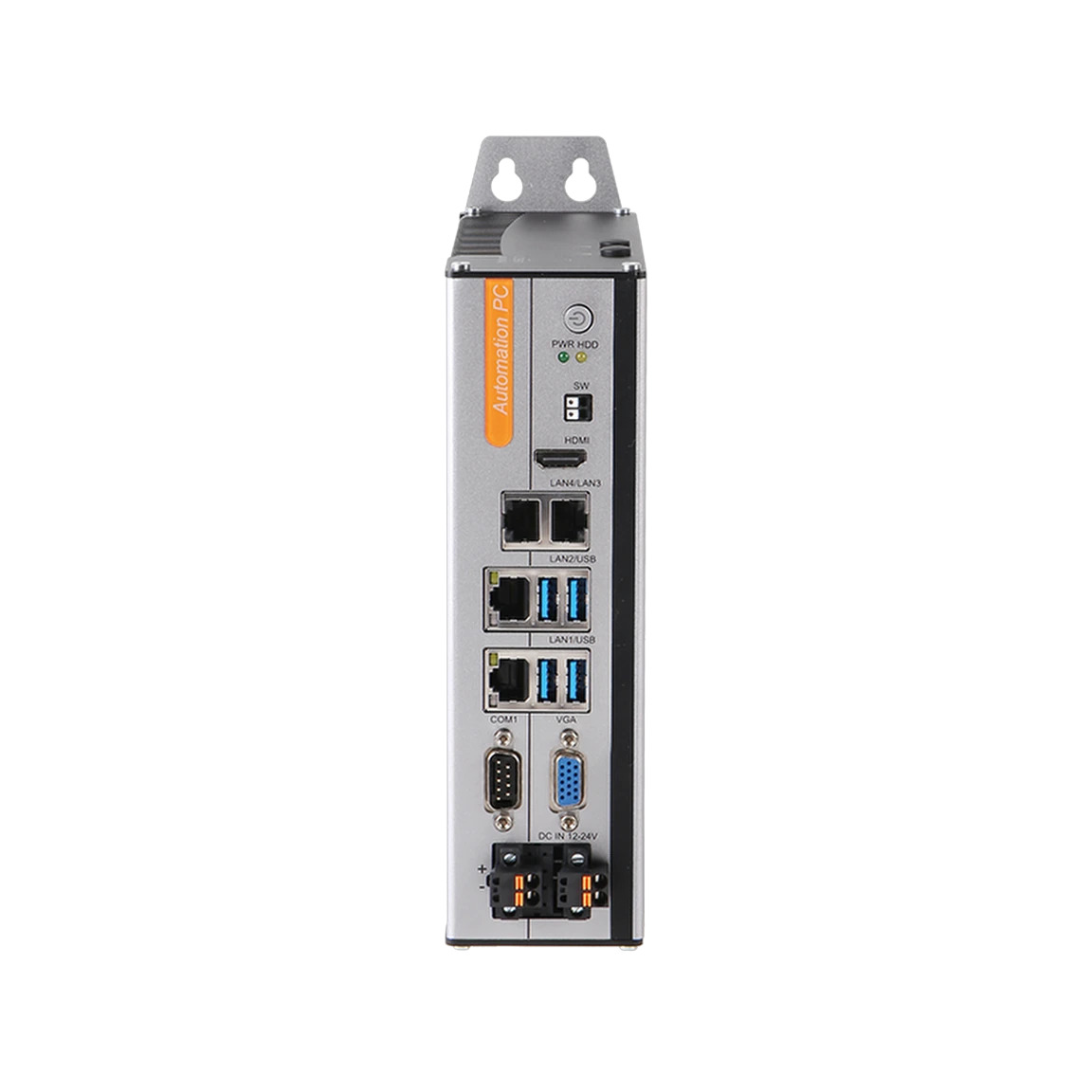

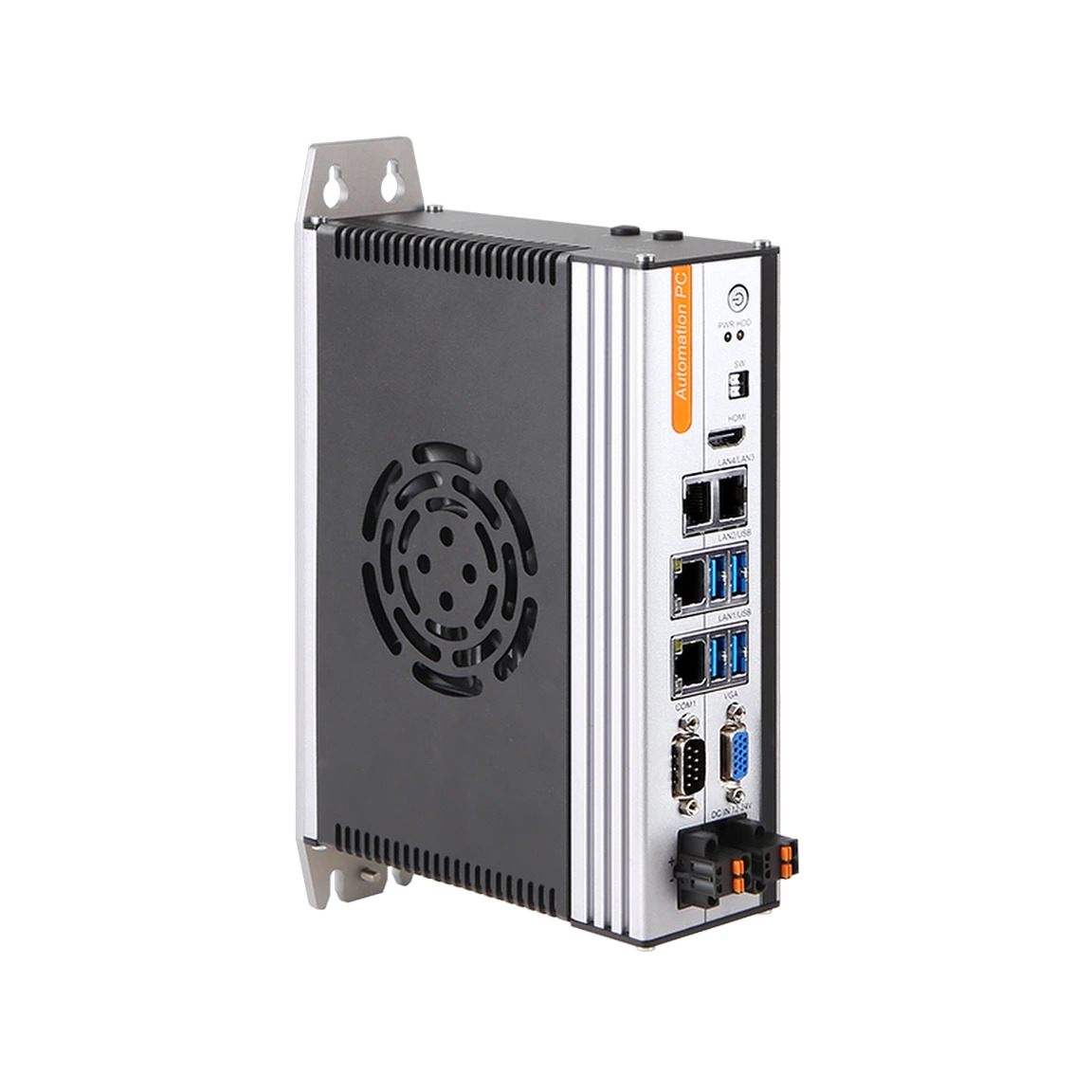

アクティブ冷却型オートメーションPC「NP-6143」は、高性能な産業用アプリケーション向けに設計されており、最大65WTDPのLGA1700プロセッサに対応しています。過酷な環境下での使用に最適で、さまざまな制御盤の構成に合わせて、壁面取り付けとDINレール取り付けの両方のオプションが用意されています。さらに、miniPCIeスロットによる拡張性、RS232/485通信への対応、USBメモリ用の内蔵USB 2.0ポートを備え、OEMロゴの刻印などのカスタマイズオプションも用意されています。こうした汎用性により、NPシリーズは幅広い産業用オートメーションのニーズに対応可能です。
主な機能：
| Model Name | NP-6143 | ||
| System | |||
|---|---|---|---|
| CPU | Intel® Core™ 12th/13th/14th gen i7/i5/i3 LGA1700 type CPU | ||
| TDP | 65W | ||
| BIOS | AMI UEFI BIOS | ||
| Memory | 2 x SO-DIMM DDR5-4800MT/s (max up to 64GB) | ||
| Storage | 1 x mSATA slot, SATA3.0 | ||

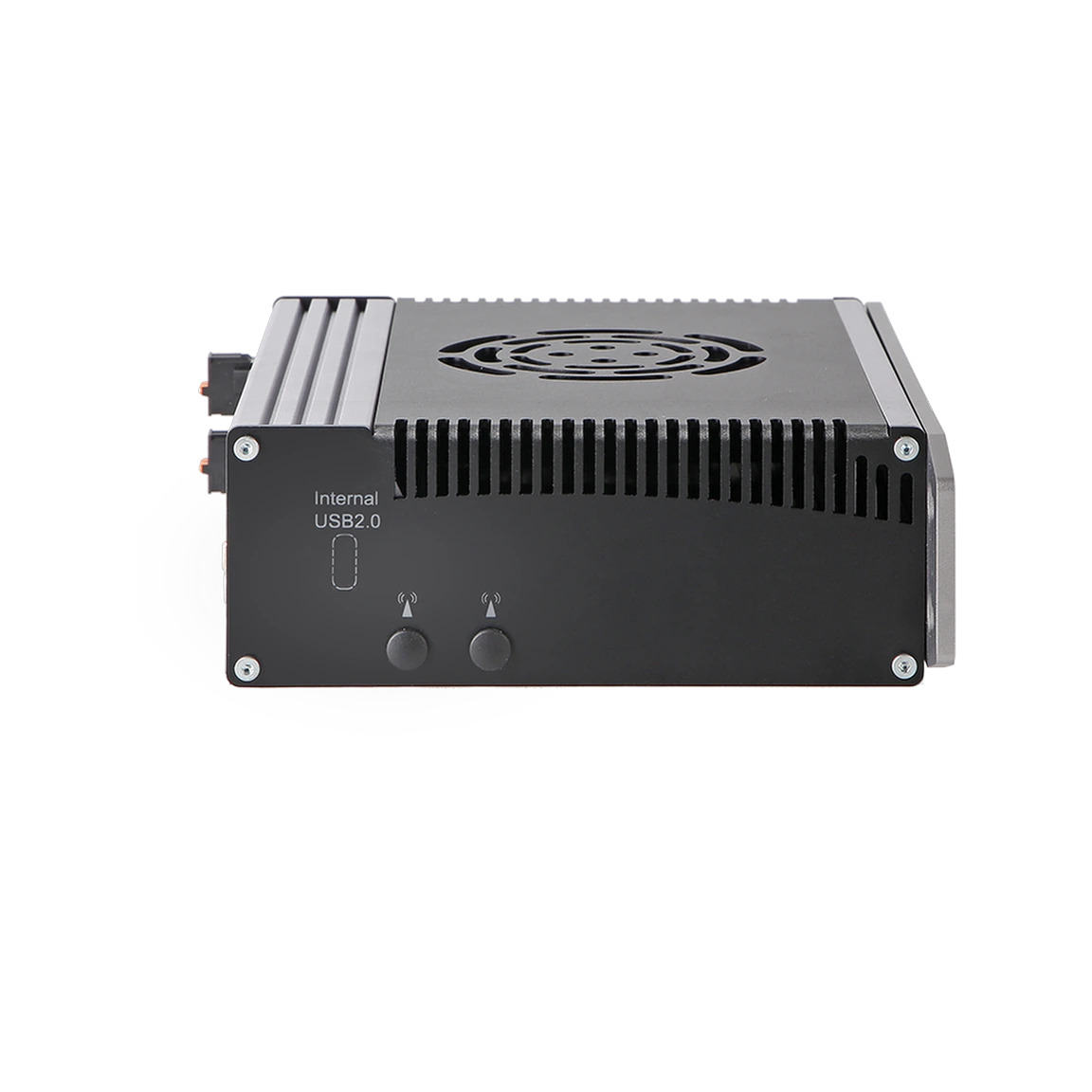

| USB | 4 x USB3.0, 1 x USB2.0 Type-A on the board for USB dongle | ||

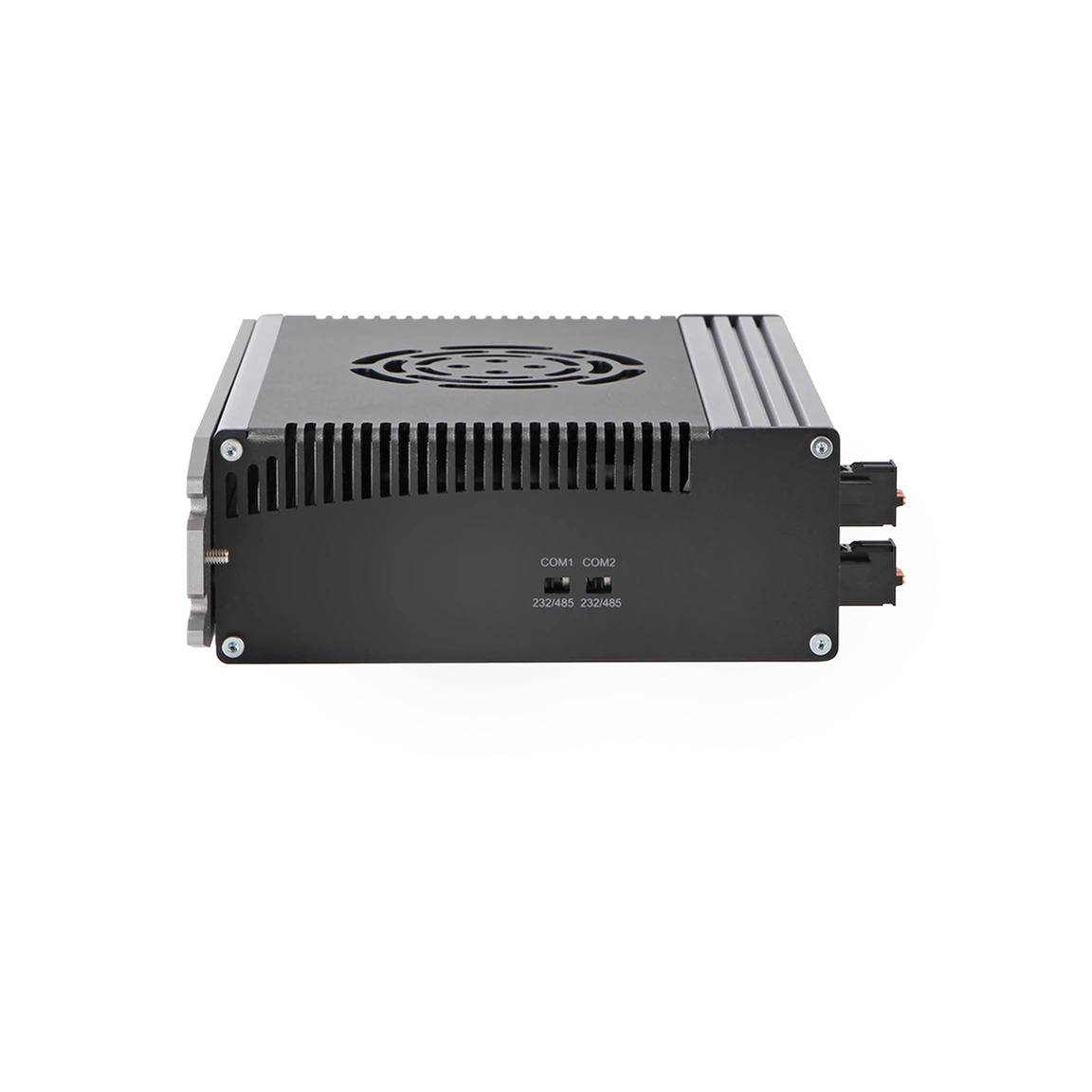

| COM | 1 x RS232/RS485 (COM1), maximum baud rate: 115.2kbit/s | ||
| Ethernet | 4 x Intel i210-AT GbE LAN controller | ||
| Remote Switch | 1 x SW | ||
| VGA | Support up to 1920 x 1080 @60Hz | ||
| HDMI | Support up to 3840 x 2160 @30Hz | ||
| Expansion | 2 x Full-size PCIe mini slot (only one slot is equipped with a SIM card holder) | ||
| Watch Dog | 1~255 levels programmable | ||
| TPM | fTPM | ||
| OS | |||
| Microsoft Windows | Windows 10, Windows 11 | ||
| Linux | Ubuntu, Debian, CentOS | ||
| Power | |||
| Voltage Input | DC12~24V ±10%, overcurrent, overvoltage and polarity inverse protection | ||
| Power Consumption | Max. 120W | ||
| Chassis | |||
| Structure | Aluminum-magnesium alloy BOX with fan embedded to assist cooling, wall-mounted or DIN-Rail fixing style | ||
| Dimensions | (L)200mm x (W)154.5mm x (H)57.6mm | ||
| Net Weight | 1.9Kg | ||
| Environment | |||
| Work Temperature | -20ºC ~ 60ºC (-4ºF ~ 140ºF) with air flow (SSD) | ||
| Storage Temperature | -40ºC ~ 80ºC (-40ºF ~ 176ºF) with air flow (SSD) | ||
| Relative Humidity | 95%@40 ℃ (Non-condensing) | ||
| Operating Vibration | 5~500Hz, 3Grms@with SSD and wall-mounted, follow IEC60068-2-64 | ||
| Operating Shock | 30G peak acceleration (11ms duration) with SSD and wall-mounted, follow IEC60068-2-27 | ||
| EMC | CE EMC, follow IEC/EN61000-6-2, IEC/EN 61000-6-4, FCC Class A | ||
| Safety | Follow IEC/EN 62368-1 | ||
| Model Name | NP-6143 | ||
| Part No. | B73.61430.00.0001 | ||
| Description | CPU: NULL, RAM: NULL, mSATA: NULL, 1 x RS232/485 (Selectable), 4 x LAN, 4 x USB3.0, HDMI/VGA display ports, 12-24V Power input | ||
| Options | |||
|---|---|---|---|
| CPU | i3-12100, i3-12100T, i3-13100, i3-13100T, i3-14100, i3-14100T i5-12500, i5-12500T, i5-13500, i5-13500T, i5-14500, i5-14500T i7-12700, i7-12700T, i7-13700, i7-13700T, i7-14700, i7-14700T i9-12900, i9-12900T, i9-13900, i9-13900T, i9-14900, i9-14900T |
||
| Memory | DDR5 4800MT/s: 8GB, 16GB, 32GB | ||
| mSATA SSD | 64GB, 128GB, 256GB, 512GB, 1TB | ||
| Wifi Set | mini PCIe: WIFI Set (AX210/7260 series), Cylindrical antenna | ||
| 3G/4G Module | mini PCIe: EC20, EG25, EC25 | ||
| Mount Option | DIN-Rail | ||
