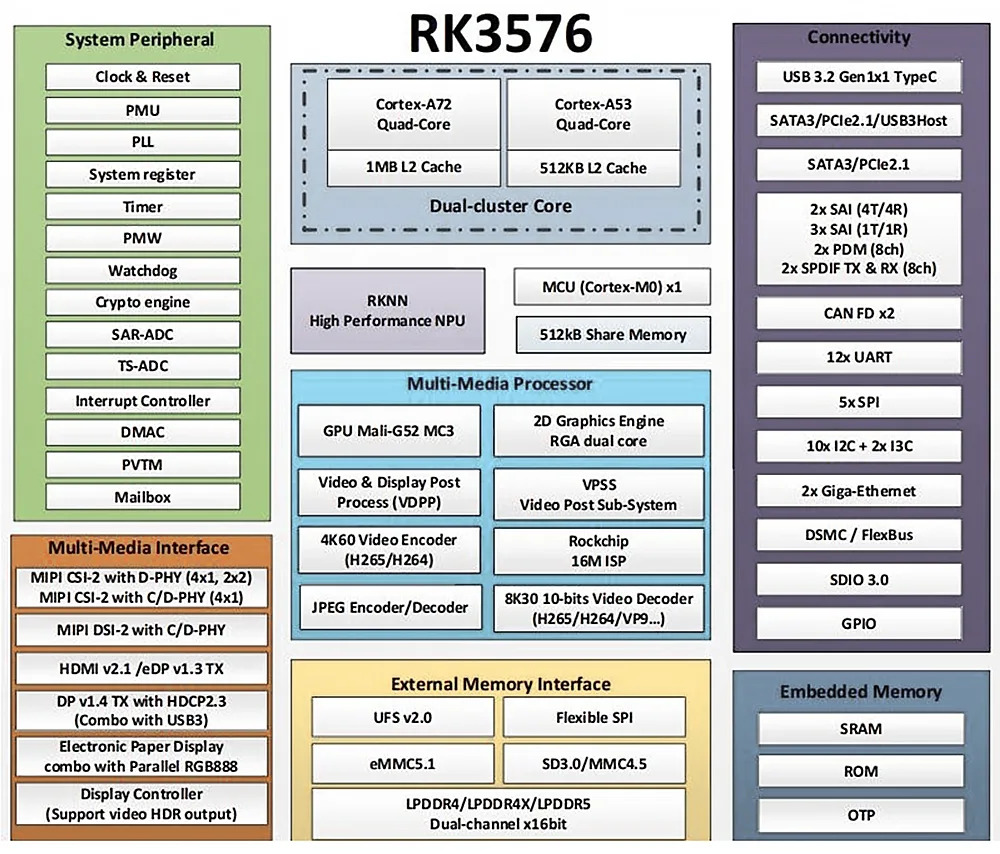

| CPU | Rockchip RK3576, 4× Cortex-A72 @ 2.2GHz + 4× Cortex-A53 @ 1.8GHz |
| GPU | ARM Mali-G52 MC3 @ 1GHz, supports OpenGL ES 3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | 6 TOPS @ INT8, supports mixed precision: INT4 / INT8 / INT16 / BF16 / TF16 |
| Memory | LPDDR5, 4GB (default), expandable to 8GB / 16GB |
| Storage | eMMC 5.1, 32GB (default), expandable to 64GB / 128GB; Lite version supports 0GB (no eMMC) |
| Wireless | Dual-band Wi-Fi 6 (2.4GHz / 5GHz) + Bluetooth 5.3; onboard PCB antenna + U.FL external antenna connector with RF switch |
| Ethernet | Gigabit Ethernet PHY (integrated), supports IEEE 1588 Precision Time Protocol (PTP) |
| HDMI | 1× HDMI 2.0, supports up to 4K@60fps output |
| MIPI CSI | 1× 4-lane MIPI CSI-2 input for camera interface |
| CAN | 1× CAN bus via GPIO multiplexing (Raspberry Pi compatibility extension) |
| PCIe | 1× PCIe 2.0 lane, up to 5 Gbps |
| USB | USB 3.0 ×1 (5 Gbps), USB 2.0 ×1 with OTG support |
| GPIO | Up to 28 GPIOs, 1.8V / 3.3V selectable via GPIO_VREF |
| SDIO / eMMC Interface | 1× 4-bit SDIO |
| Debug UART | 1× 3-pin JST-SH connector for debugging |
| Board-to-Board Connector | 2× DF40C-100DS-0.4V connectors |
| Operating System | Android , Debian |
| Operating Temperature | 0°C to +70°C (standard) / -40°C to +85°C (industrial grade) |
| Power Supply | 4.5V – 5.5V DC |
| PCB Dimensions | 40mm × 55mm |
