スペック情報

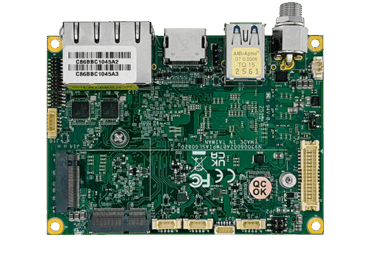

| MODEL | 2I612CW |
|---|---|
| CPU Type | Intel® Skylake-U / Kaby Lake-U i7 / i5 / i3 / Celeron CPU |
| MB Chipset | Intel® Skylake-U / Kaby Lake-U SoC |
| Graphics | Intel® HD Graphics, Support Direct X 12 & OpenGL 4.4 / 4.5 |
| System Memory | 1 x DDR4 1866 / 2133 MHz SODIMM, Max.16GB |
| Storage | 1 x SATA ports 3.0 Data transfer rates up to 6.0 Gb/s (600 MB/s) |
| 1 x mini card socket for mSATA | |
| BIOS | Insyde UEFI BIOS |
| Display | 2 x HDMI (OEM to DP) |
| 1 x eDP | |
| TPM | TPM 2.0 (Option) |
| LAN | 2 x Intel GbE I210IT (external) |
| Expansion Interface | 1 x Full size Mini PCIe (PCIe / mSATA / USB) |
| 1 x Full size Mini PCIe (PCIe / USB 3.0 / USB2.0) | |
| USB | 4 x USB 3.0 (external) ; 3 x USB 2.0 (internal) |
| Serial IO | 2 x RS232 / 422 / 485 (internal) |
| GPIO | Hardware digital Input & Output, 4 x DI / 4 x DO |
| WDT | Hardware Watch Dog Timer, 0~255 sec programmable |
| Power Input | Wide Range DC in +9V~36V |
| Dimension | 2.5″ (110 x 92 mm) |
| Operation Temperature | -20°C~70°C (100 % CPU Usage) |
| Operation Humidity | 5~95%, non-condensing |
| Chassis | Box PC: SKY 2, TERA |
| Expansion Module | Mini Card: GPS, 3G / 4G, WI-FI, 2 / 4 x LAN, 4 x COM, CANBus, SDI / AHD Video |
| By Cable: Bluetooth, Digital I/O, 2 / 4 PoE, 4 x USB mini card |
