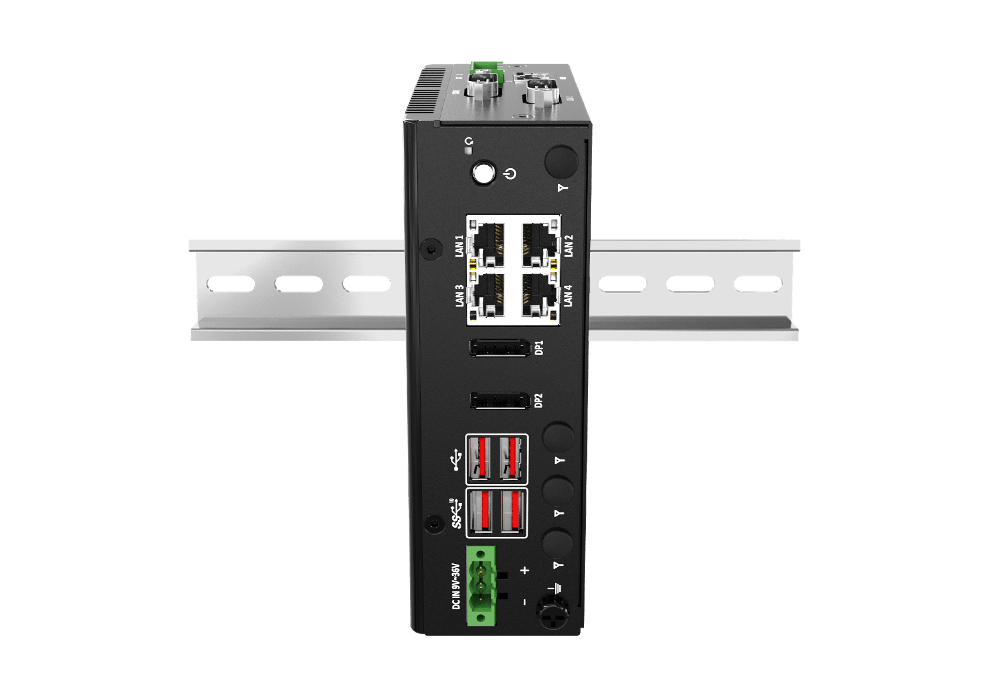

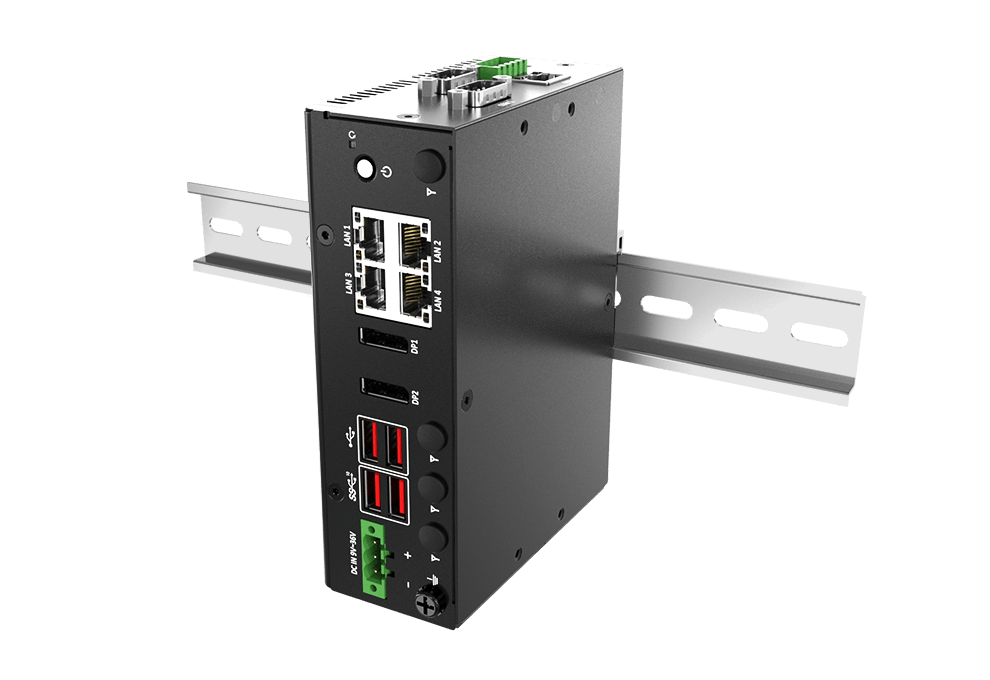

産業用エッジ向けに設計されたAmston Lake搭載高性能DINレールコンピューティング
Intel® Atom® プロセッサー x7433REを搭載し、大規模なデータセットの処理と複雑なオペレーションの管理を容易にこなします。
高速イーサネット、Wi-Fi、5Gを含む豊富な接続オプションを装備し、伝統的な自動化システムと最先端のIIoT機能を橋渡しするダイナミックなIoTゲートウェイとして機能します。これにより、業界はリアルタイム分析と高度な適応性を活用し、優れた運用効率を実現できます。
| System | |
| Processor | Support Intel® Atom® Processor (Up to 9W TDP)Support Intel® Atom® Processor (Up to 9W TDP) |
| System Chipset | SoC integrated |
| LAN Chipset | 4x Intel® I226 2.5GbE LAN (LAN4 supports TSN) |
| System Memory | 1x 262-Pin DDR5 4800MHz SODIMM. Max. up to 16GB (In-Band ECC Supported) |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort 1.4a, 4096 x 2160@60Hz |
| Multiple Display | 2x Independent Displays |
| Storage | |
| M.2 B-Key | 1x M.2 (B Key, 3042/3052, PCIe x2, support NVMe), Default 128G SSD |
| SIM Socket | 1x Dual Nano SIM Socket |
| Expansion | |
| M.2 | 1x M.2 (B Key, 3042/3052, USB 3.2 Gen2 & USB2.0, support 4G/5G Module) |
| 1x M.2 (E Key, 2230, PCIe x1 & USB2.0, support Wifi/Bluetooth) | |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux kernel 6.2 |
| I/O | |

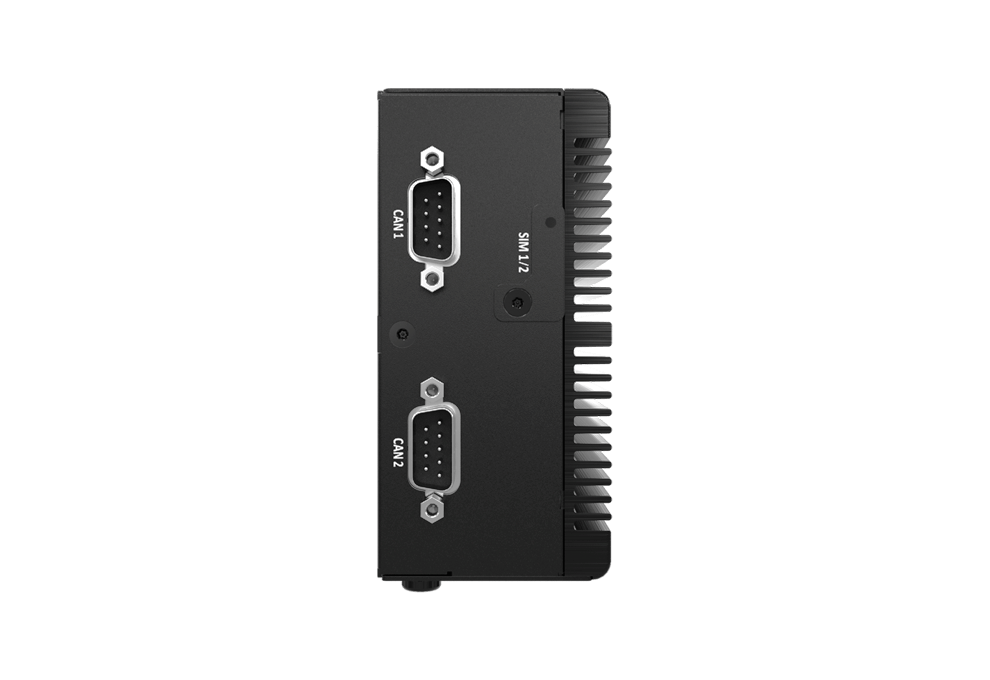

| CAN | 2x 2-pin Internal header (Optional) |

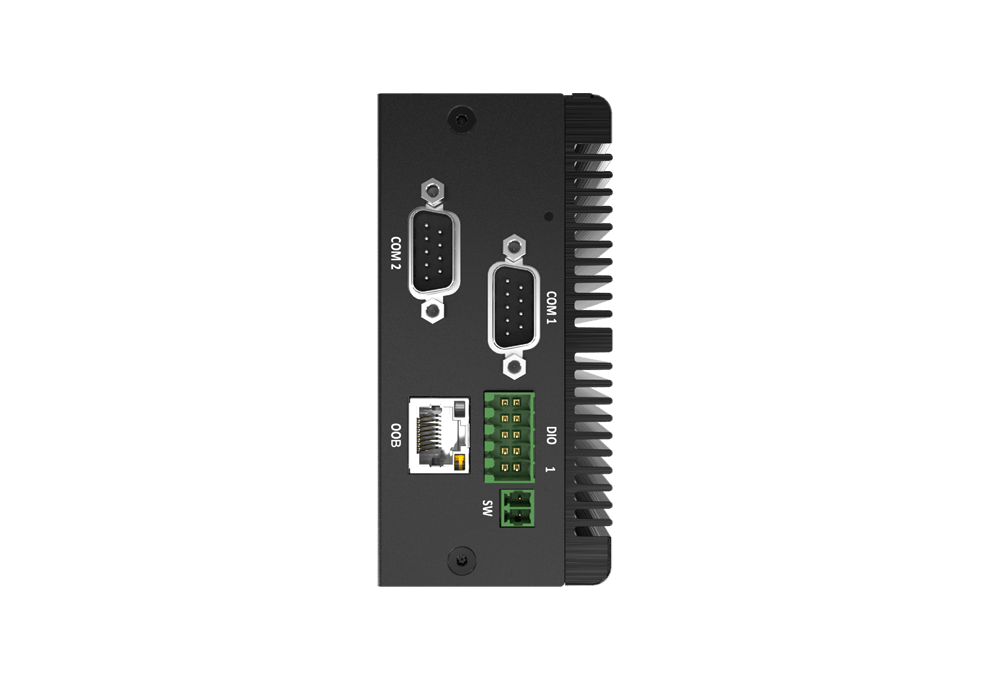

| COM | 2x RS-232/422/485 |
| DIO | 4 in / 4 out (Isolated) |
| LAN | 4x RJ45 |
| OOB | 1x RJ45 (Optional) |
| USB | 2x USB 3.2 Gen 2 (10 Gbps) 2x USB 2.0 |
| Others | 4x WiFi Antenna Holes |
| 1x Power Switch, 1x Reset Switch | |
| 1x AT/ATX Internal Switch Jumper | |
| 1x 2-PIN Remote Power On/Off | |
| 1x Internal CMOS Battery Cable | |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 60W |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 55°C |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 61010-1, UL 61010-2-201 CE, FCC Class A, UKCA, ICES-003 |
| Vibration | DIN-Rail Wall Mount with NVMe SSD: 5 Grms, 5 – 500 Hz, 0.5 hr/axis DIN-Rail Mount with NVMe SSD: 5 Grms, 5 – 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 20G, half sine, 11ms |
| Physical | |
| Dimensions | (W x D x H) 150 x 105 x 50 mm |
| Weights | 0.85 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |

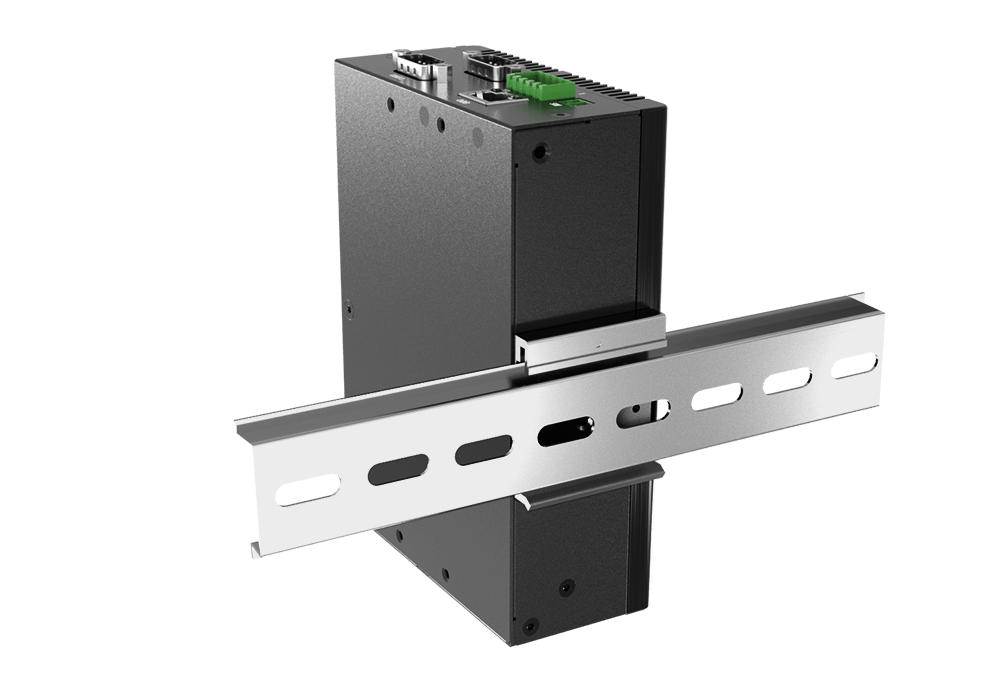

| DIN-Rail Mounting (Optional) | |
