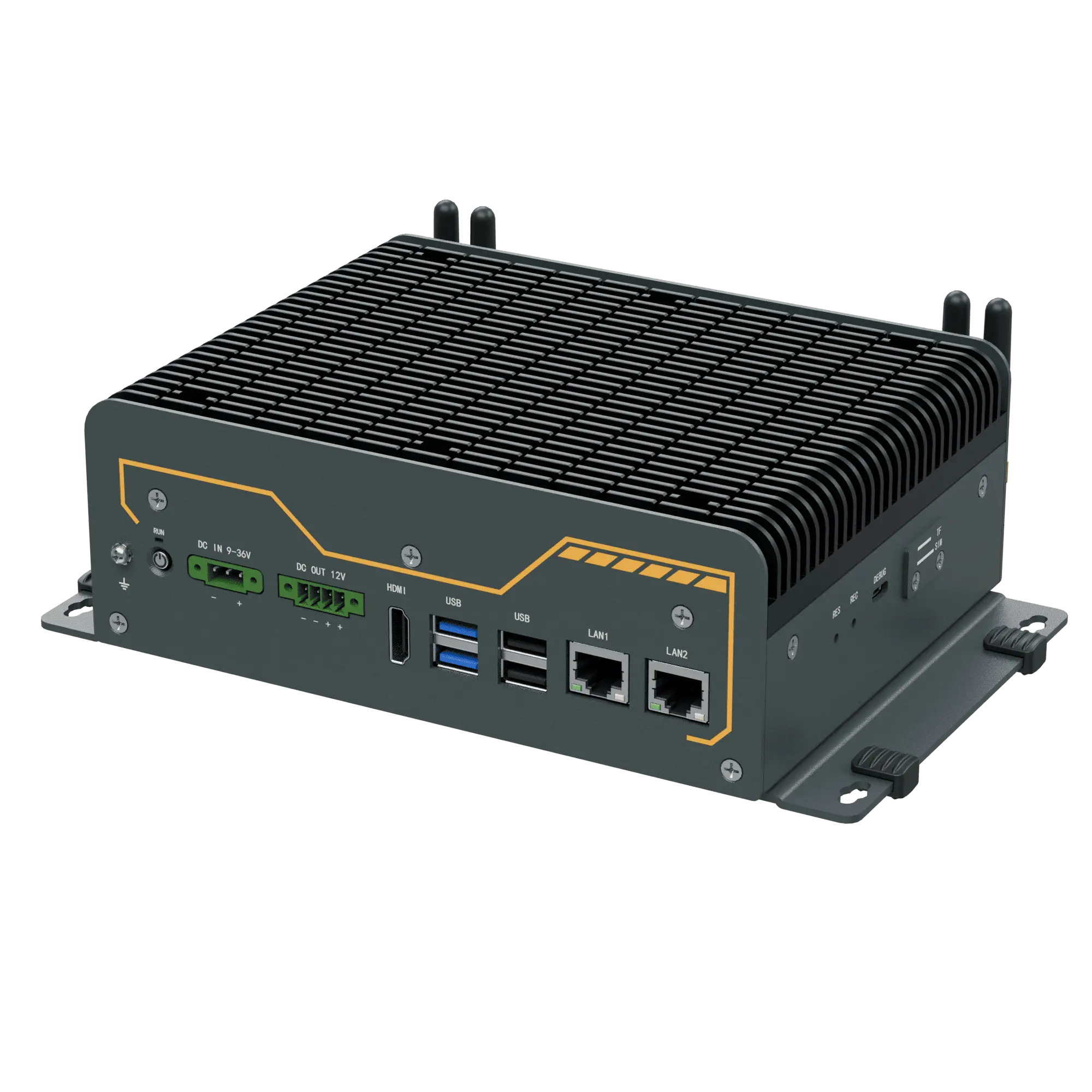

BRAV-7120|マルチアクセス・エッジ・コンピューティング(MEC)システム

【BRAV-7120】は、NVIDIA Jetson Orin Nanoモジュール、6コアARM CPU、高性能GPUを搭載し、最大20~67TOPSのAI性能を発揮します。オンボード4/8GBメモリ、マルチチャンネルIO、DC 9~36Vのワイド電圧電源を備えています。インテリジェント交通、マシンビジョン、インテリジェント物流などの業界におけるMEC(マルチアクセス・エッジコンピューティング)として活用できます。


製品概要・特徴

主な機能:

  • NVIDIA Jetson Orin Nano 4/8G、20~67TOPS
  • 6コア ARM Cortex-A78AE v8.2 64ビットCPU
  • Ampere GPU(512/1024コア)、16/32 Tensorコア搭載
  • 4/8G LPDDR5、1M.2 2280 M-Key NVMe
  • 2LAN(POEオプション)、2Iso.CAN(CANチャネルのうち1つは絶縁型、オプション)、4GMSL(オプション)
  • ビデオコード:1080p30、1~2CPUコアでサポート
  • ビデオデコード:1x4k60 | 2x4k30 | 11x1080p30
  • HDMI x 1、ライン出力 x 1、USB3.2 x 2、USB2.0 x 2、デバッグ x 1、Iso.COM x 2、8ビットIso.DIO x 1
  • M.2 3052 B-Key+SIM x 1、MiniPCIe x 1
  • DC-IN 9~36V ワイド入力、DC-OUT 12V
  • アルミ合金製シャーシ、ファンレス冷却設計

スペック情報

AIperformance 20~34 TOPS(S001),40~67 TOPS(S002)
CPU 6 cores Arm® Cortex-A78AE v8.2 64 bit CPU 1.5MB L2 + 4MB L3 (S001)
GPU 512*Cores NVIDIA Ampere Architecture GPU , with 16*Tensor Cores(S001)
1024*Cores NVIDIA Ampere Architecture GPU , with 32*Tensor Cores(S002)
DL Accelerator  VS Accelerator 1*NVDLA v2(S001)/2*NVDLA v2(S002),  PVA v2.0
Memory On board 4GB 64bit LPDDR5 34GB/s(S001)  /  8GB 128 bit LPDDR5 68GB/s(S002)
Expansion 1*M.2 3052 B-Key, with SIM card slot ,support 4G LTE or 5G NR ;
1*M.2 2280 M-Key , support NVMe high-speed memory card ;
1*Mini PCIe
Graphics Video code:1080p30 supported by 1-2 CPU cores
Video decode:H.265: 1*4K60 | 2*4K30 | 4*4K30 | 5*1080p60 | 11*1080p30
Audio Realtek ALC5640 , support stereo channel output
LAN 2*LAN 10/100/1000Mbps (Default support for 2 regular gigabit network, with 2 POE as an option)
Storage 1*M.2 2280 M-Key ,support NVMe high-speed memory card; 1*Micro SD
Camera Default support 2*4 lane Mipi(22pin),4*GMSL as an option
DIO and serial port 4-bit  2.5KV Iso.DI(TTL signal),4-bit 2.5KV Iso.DO(TTL signal);
2*2.5KV Iso.RS232+RS485 /422;

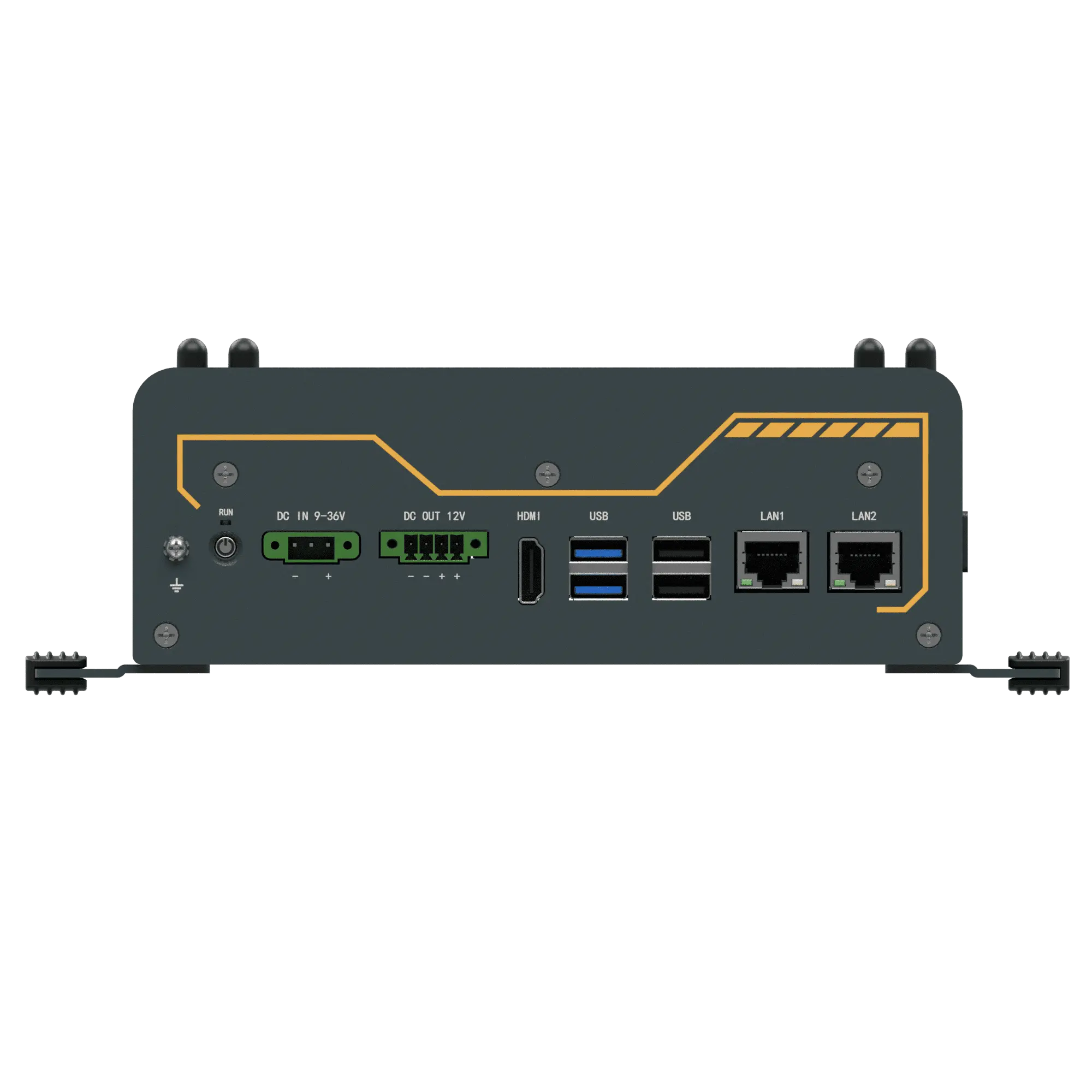

I/O Interface 2*RJ45(2*POE optional); 1*HDMI; 2*USB3.2(Gen2  10Gbps, Type A); 2*USB2.0 (Type A);
1*Line out; 1*Iso.RS232+1*Iso.RS485/422(2*5pin Phoenix terminal) ;2*Iso.CAN (1个DB9,One of the CAN channels with isolation is optional);
1*8-bit Iso.DIO (2*6pin Phoenix terminal);  1*SIM card slot; 1*Mico SD card slot; 4*ANT;
LED 1*Power LED(on power button), 1*Running lights

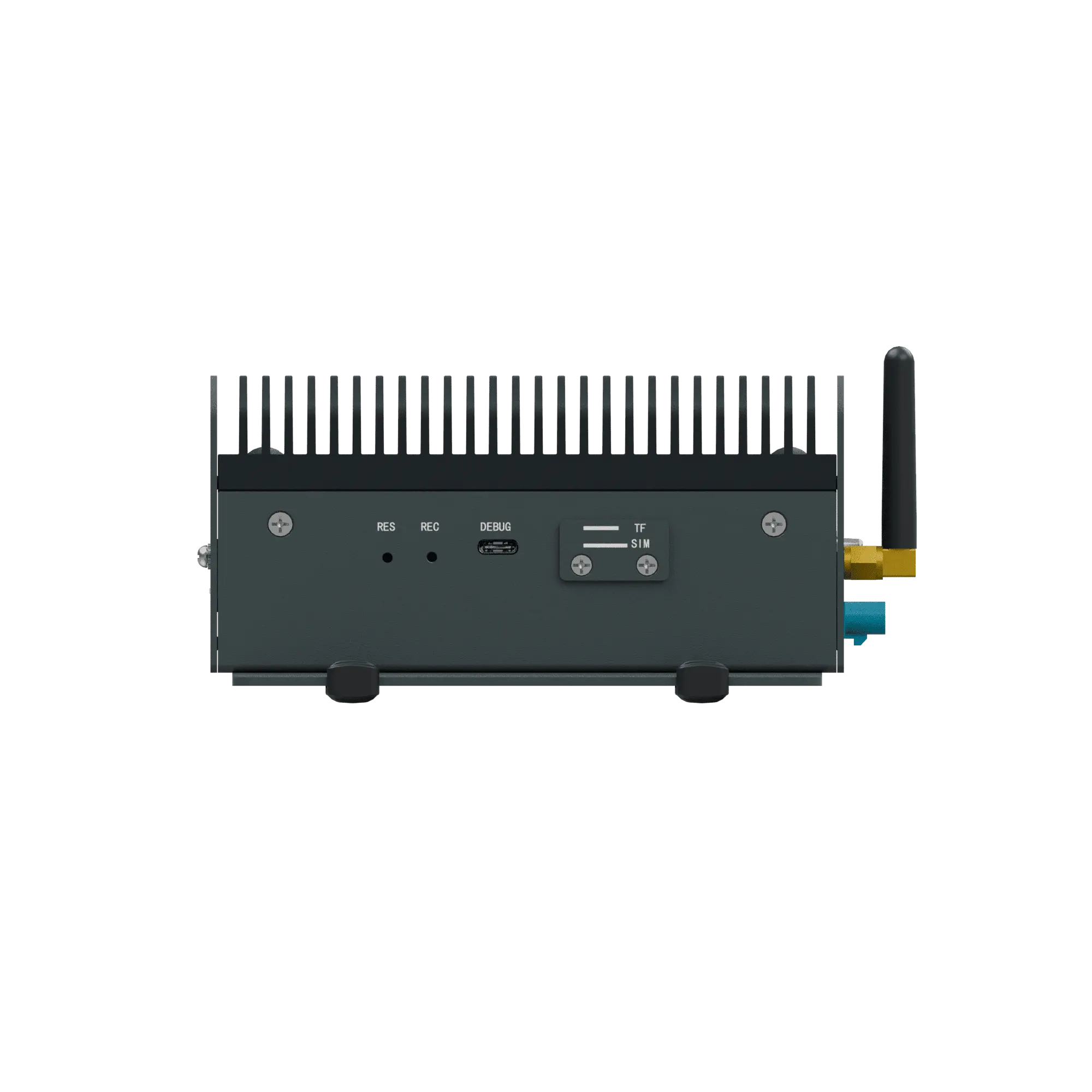

Control switch 1* Power button w/LED, 1*RST button; 1*REV button;
Power Supply DC 9~36V wide power input , 3-pin 3.81mm terminal block ,with short circuit, over voltage and over current protection;TDP:25w ;DC 12V output up to 3A ,4-pin 3.5mm terminal block
OS Support Linux Ubuntu 18.04 and 20.04  with JetPack 5.1.2
Structure Aluminum-magnesium alloy chassis, fanless Cooling, SGCC frame
Color Granite gray + Graphite black
Mounting Desktop Mounting with anti-vibration rubber pads
Dimension (L*W*H):Main box :190*145*68mm;
Net weight TBD
Operating temperature -20℃ ~ 60℃ ,  airflow
Storage Temperature -40°C~85°C
Storage Humidity 10~90%@40°C, Non-condensing
Vibration 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD)
Shock 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD)
Certification/EMC CE/FCC Class A
