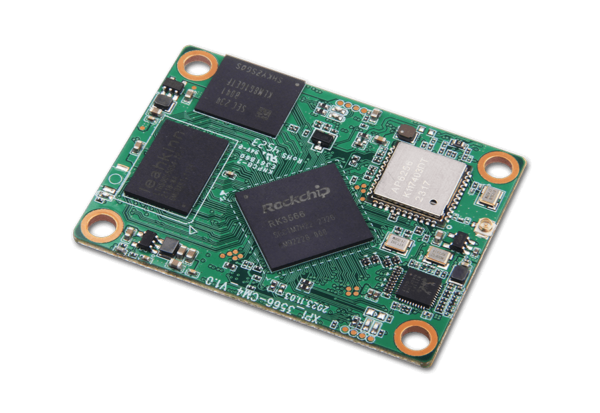

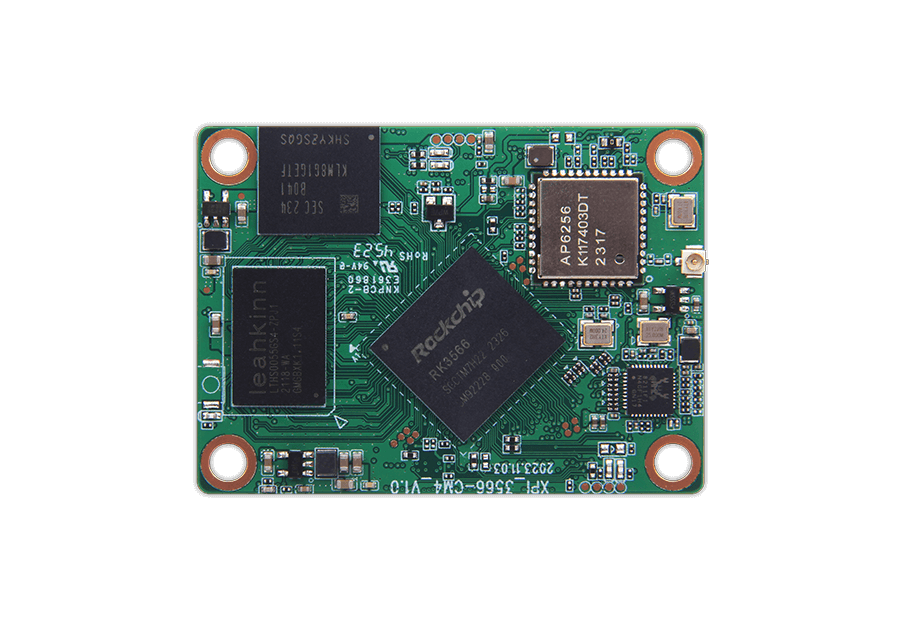

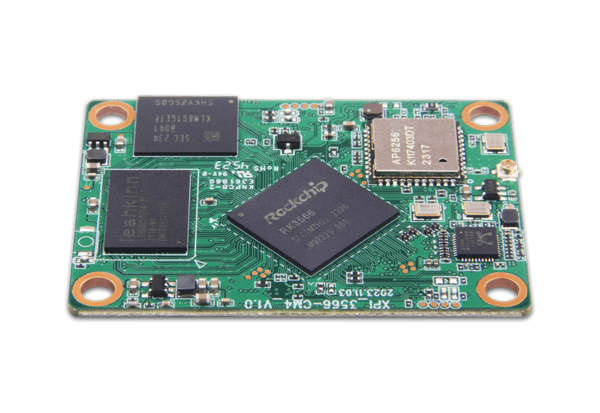

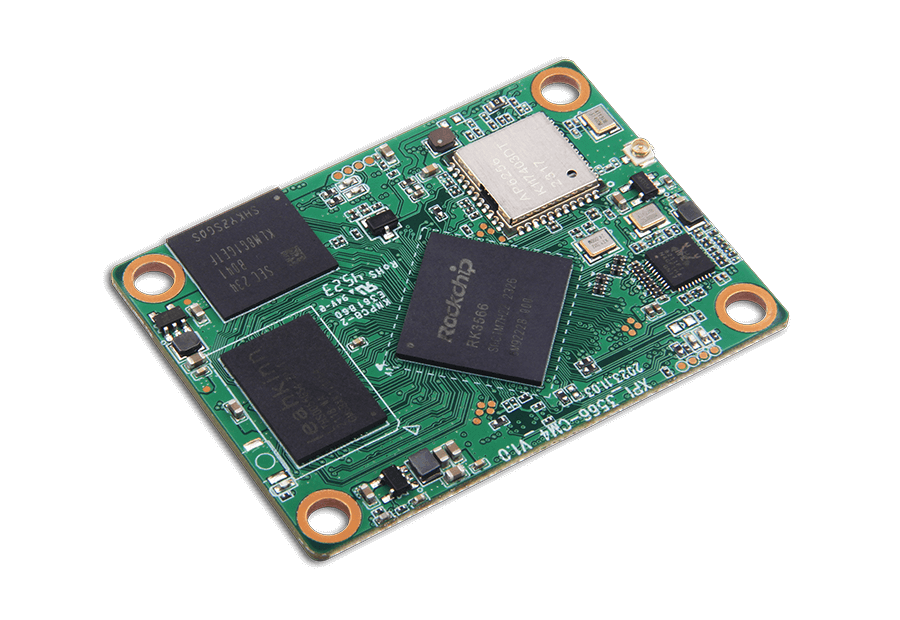

| Chipset | Rockchip RK3566 |
| CPU | Rockchip RK3566, Quad-core ARM Cortex-A55 to 1.8GHz |
| GPU | OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. Embedded high-performance 2D acceleration hardware |
| NPU | Supports INT8/INT16/FP16/BFP16 MAC hybrid operation. Supports TensorFlow/MXNet/PyTorch/Caffe network models converted. |
| VPU | Supports 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 60fps H.265/H.264 video encoding |
| LPDDR4 | 1G (up to 8G optional) |
| EMMC FLASH | 8GB (up to 32GB optional) |
| NETWORK | RJ45, Onboard Gigabit Ethernet PHY supporting IEEE1588 WIFI Module 2.4G/5.0G BT5.0(integrated in the WiFi module) |
| Interface | 1*HDMI®out 1* USB 2.0 + 1* USB 3.0 1*MIPI-CSI 2*MIPI DSI 1*PCIe 1*Standard 28-pin GPIO header Can be expanded to UART, SPI, I2C, PWM, SDIO, DPI, PCM, GPCLK function |
| OS | Debian 11/Rasberry Pi OS |
| Adapter | DC 5V / 2A |
| Dimensions | 55*40*4.7mm |
