【BRAV-7722】は、Intel® Alder Lake-S/Raptor Lake-S/Raptor Lake-S RefreshシリーズプロセッサとQ670チップセットを搭載した高性能AIエッジコンピューティングシステムです。CPUとGPUのデュアルプロセッサによる高性能設計、マルチネットワークポート、マルチディスプレイ、マルチI/O機能を備えております。オプションでBMCモジュールをサポートし、遠隔管理を実現します。DC 19Vの直流電源インターフェースを搭載し、インテリジェント交通、マシンビジョン、無人運転、インテリジェントセキュリティ、デジタル医療などの分野でご利用いただけます。
主な機能：
| Product SPEC | |
| CPU+PCH | Intel® 12th/13/14th-Gen Alder lake-S or Raptor lake-S or Raptor lake-S Refresh Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU，Intel® Q670 PCH |
| Memory | Dual channel 4*DDR5 4800/5600MHz, up to 192GB |
| Expansion | 1*Mini-PCIe Full size,SATA and PCIe signal automatic detection and recognition 1*M.2 Type 2230 E-key, support BMC module 1*M.2 Type 3042/52 B-key, PCIeX1, USB2.0+SIM, support 5G NR compatible with 4G LTE 1*M.2 2280 M-Key, support NVME high-speed SSD or PCIe signal module 1*MXM3.1, PCIeX16, power supply up to 190W, support all MXM GPU modules and AI acceleration cards on the market with power consumption below 190W |
| Graphics | Intel® UHD Graphics, Supports DirectX 12, OpenGL 4.5，OpenCL 3.0, HDMI max res. 7680*4320@60Hz |
| LAN | 2*Intel I210AT chip, support 10/100/1000Mbps adaptive; 1*Intel I210AT chip, optional support for IPMI remote management (with B2400 BMC module) |
| Storge | 1*2.5 “HDD/SSD SATA3 6.0Gbps, can support large capacity 15mm thickness HDD, up to 6G bit/ second transmission speed; 1*M.2 2280 M-key( PCIeX4 signal), support NVMe ultra-high speed storage; 1*mSATA(optional with Mini PCIe) |

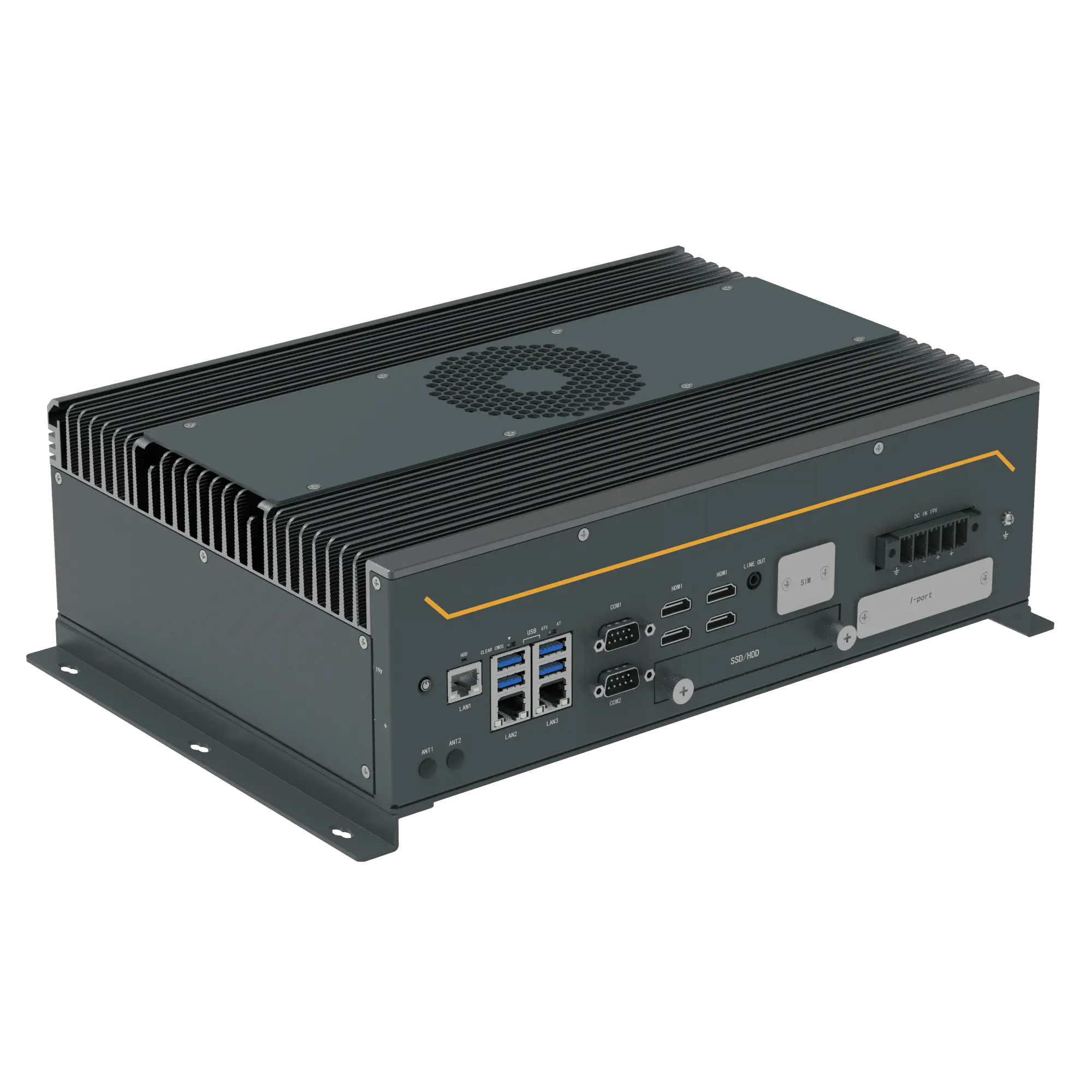

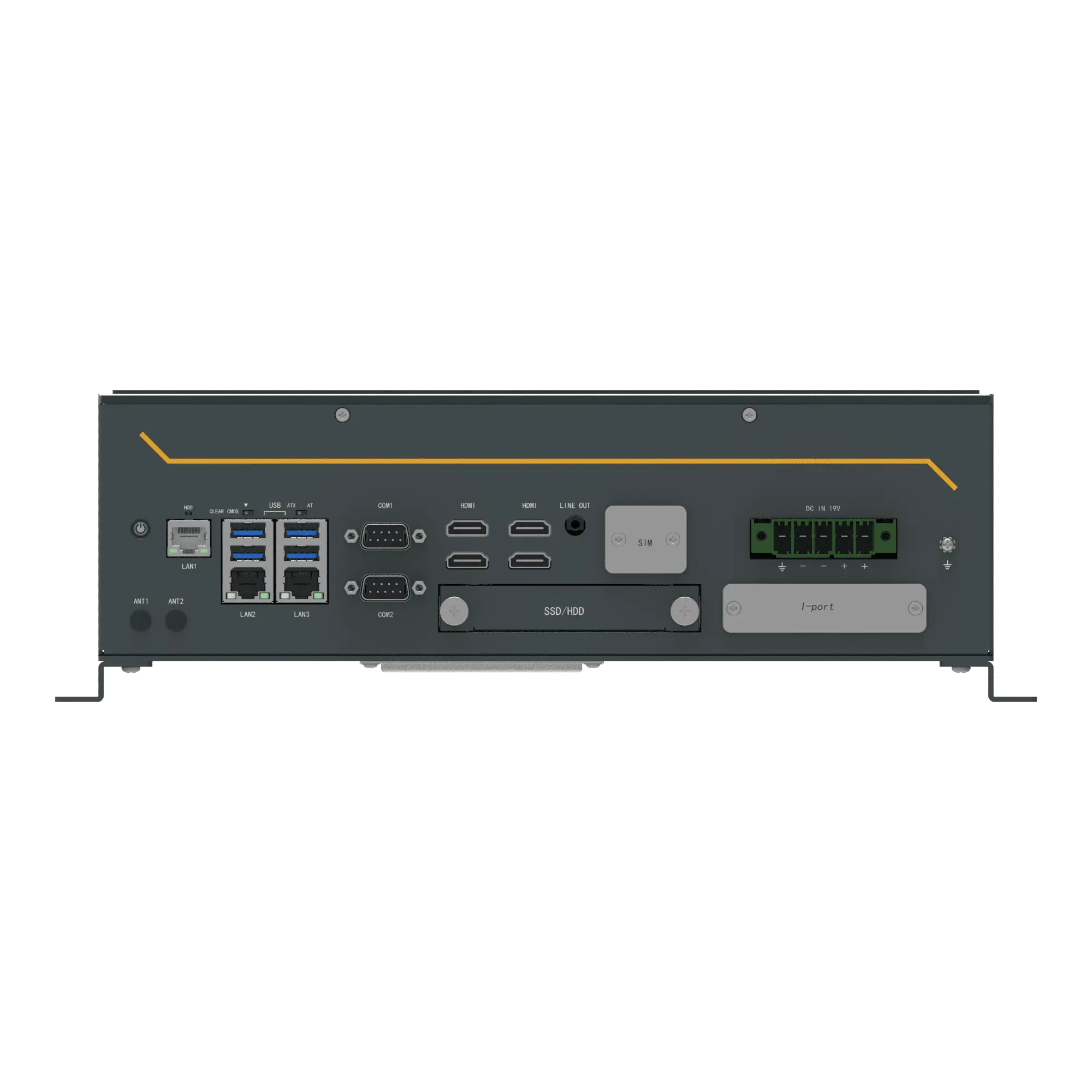

| I/O Interface | Front I/O：3*LAN (Rj45)；4*USB3.2(Type A), max10Gbps transport speed; 2*HDMI(CPU graphics)，2*HDMI(MXM GPU) , 1*SIM card slot; 2*RS232/422/485, can select mode via BIOS (DB9 Male); 1*Line out (3.5mm phone jack); Internal I/O: 1*RS232; 2*USB2.0(2*4 header)；2*SATA3+SATA power |
| I-port | Support internal1*RS232、2*USB2.0 or M.2/Mini PCIe and ect. expansion module |
| LED | 1*Power LED(on power button), 1*HDD LED |
| Control SW | 1*Power button w/LED, AT/ATX dip, Clear Cmos dip |
| Power Supply | DC 19V power supply interface, 5-pin 7.62mm phoenix term，with short circuit, over voltage and over current protection，Maximum output power: 500W TDP: TBD |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Support | WIN11/WIN10/Linux |

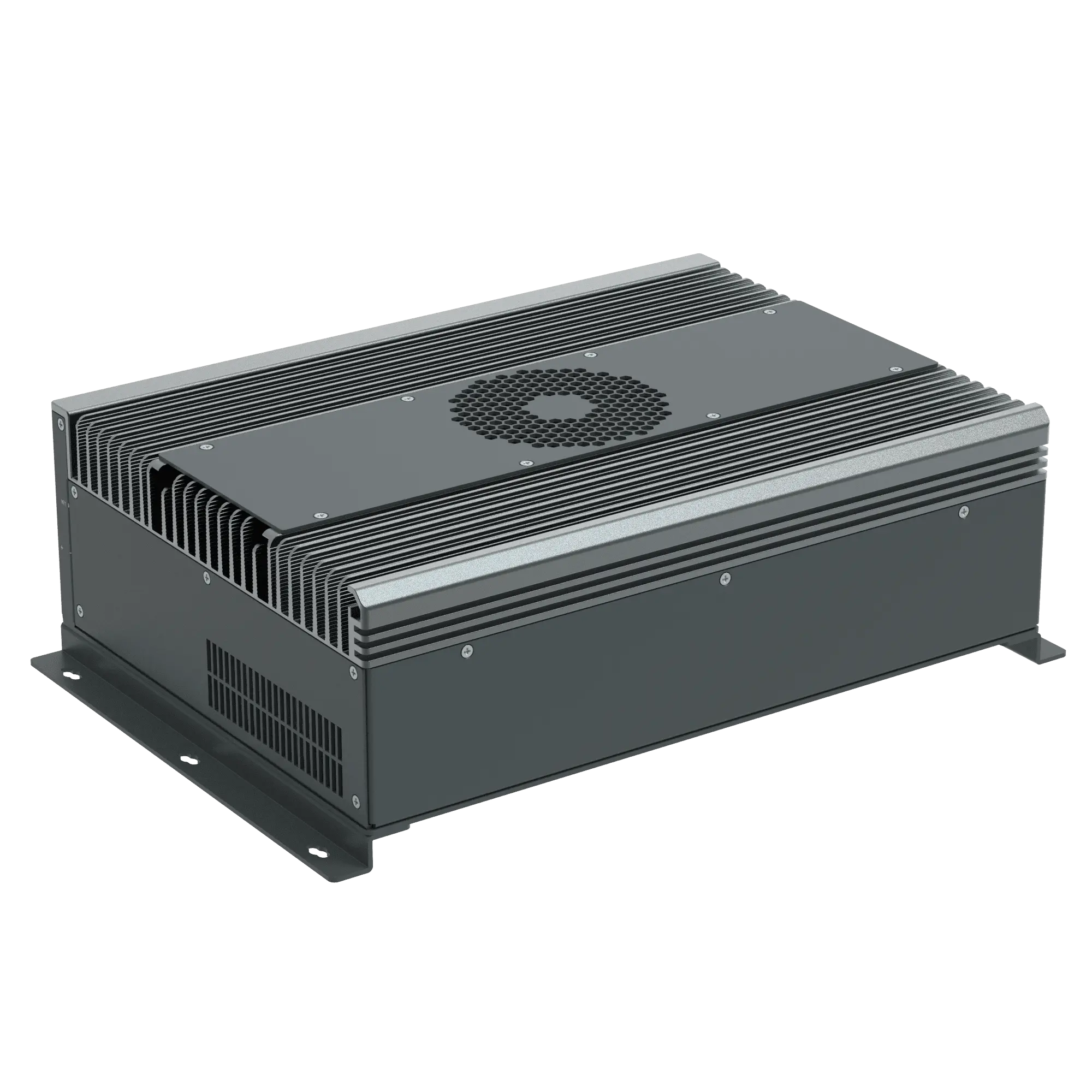

| Structure | Aluminum extruded profile heat dissipation shell, SGCC frame, CPU aluminum fan heat dissipation, the GPU fan + VC + soaking plate Fin aluminum radiator |
| Color | Granite gray + Black |
| Mounting | Desktop Mounting, with anti-vibration rubber pads |
| Dimension | (W*D*H)：362*240*115mm（With tabletop mounting bracket）；330*240*100mm（Without mounting bracket） |
| Net weight | 6.70kg |
| Operating temperature | -20℃～60℃ (35W CPU), with airflow |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~95%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） |
| Certification/EMC | CE/FCC Class A |
