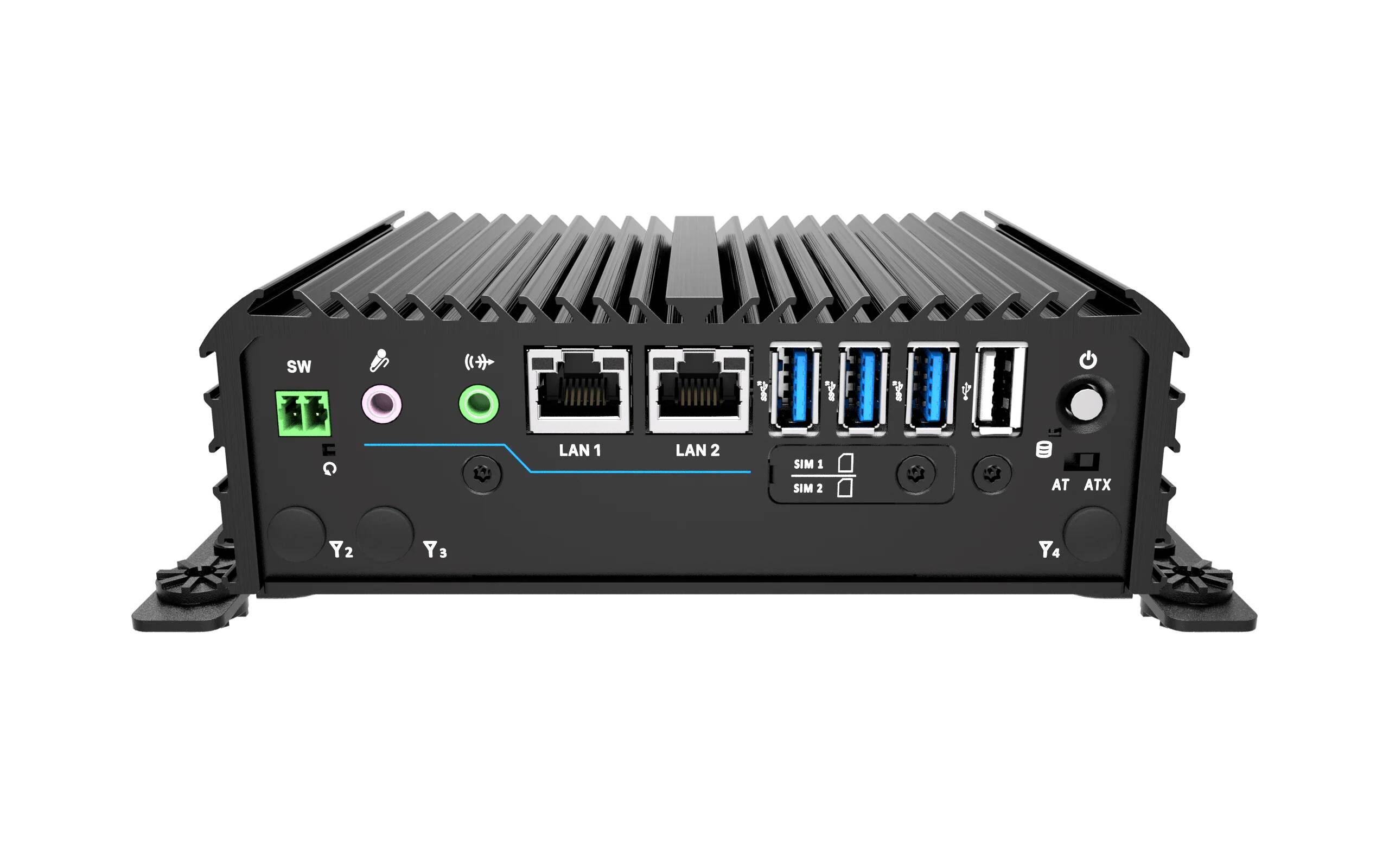

RCO-1000-ASL-10
|

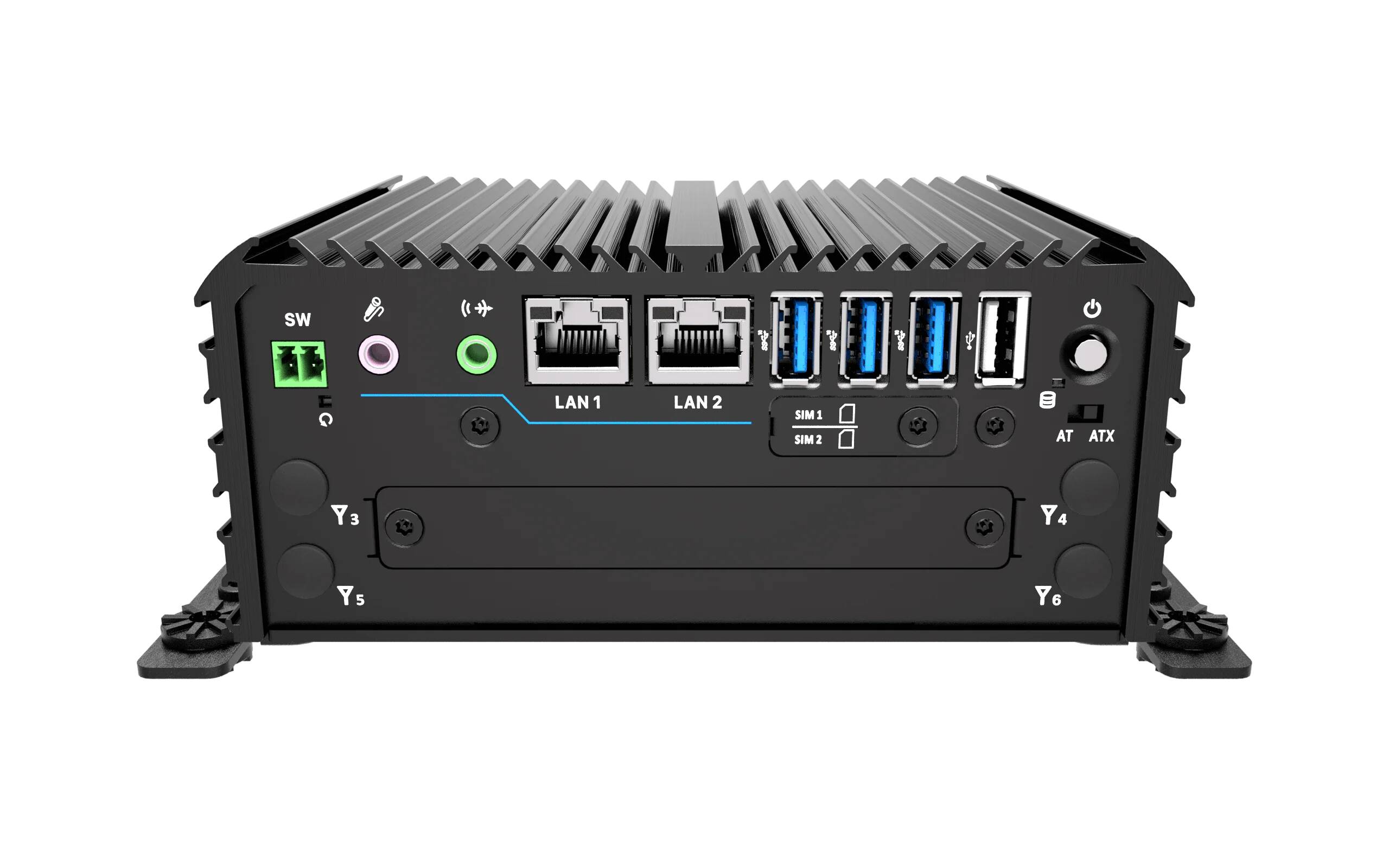

RCO-1000-ASL-20 |

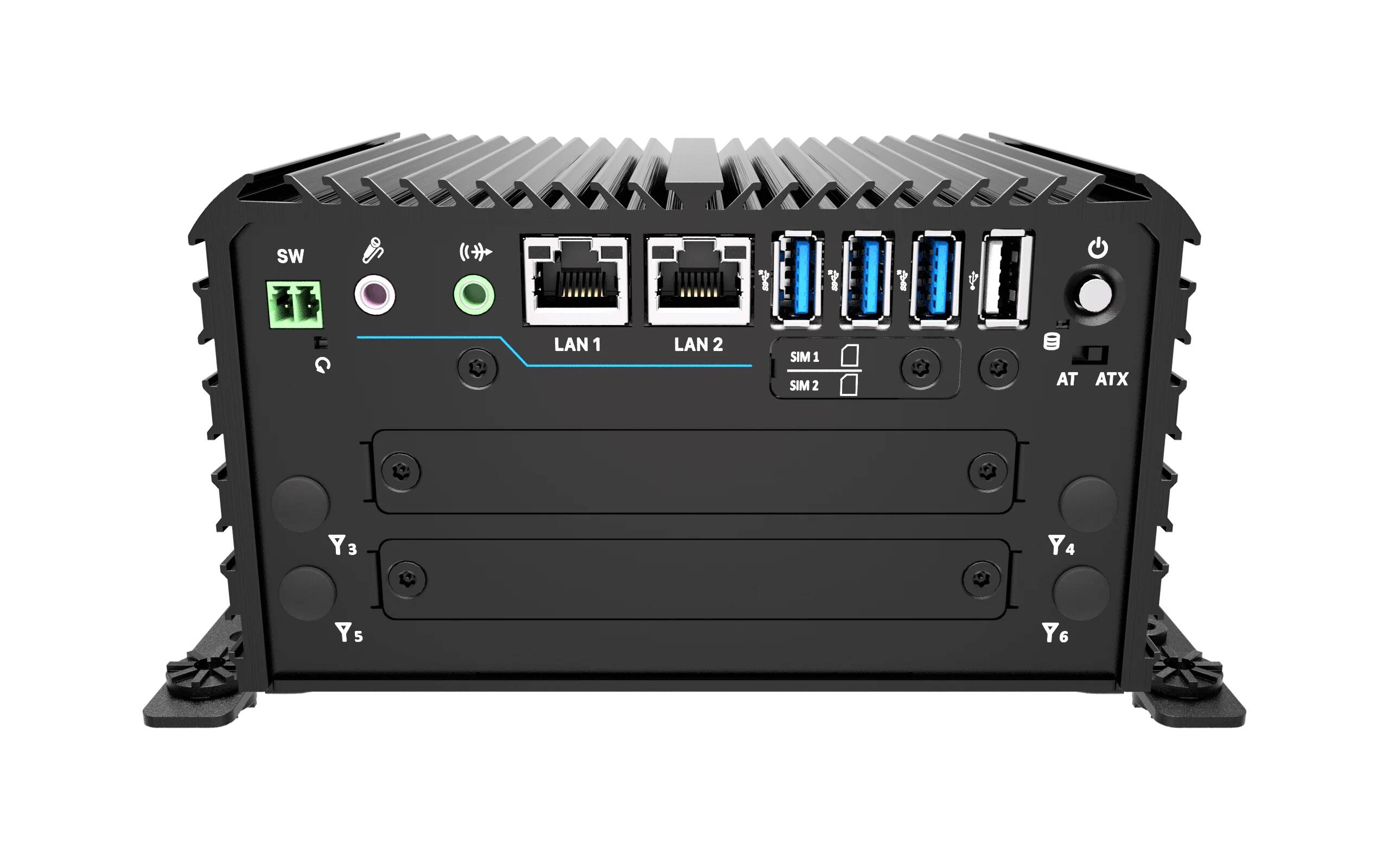

RCO-1000-ASL-30 |
|
| Processor |
– Intel Atom® x7433RE Processor 6M Cache, up to 3.40 GHz 4 core 9W (Default)
– Intel Atom® x7835RE Processor 6M Cache, up to 3.60 GHz 8 core 12W |
| System Chipset |
SoC integrated |
| LAN Chipset |
2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE)
2.5 GbE2: Intel I226 (Support Wake-on-LAN and PXE) |
| Audio Codec |
Realtek ALC888C |
| System Memory |
1x 262-Pin DDR5 4800/5600 MT/s SO-DIMM. Max. up to 32GB Non-ECC |
| Graphics |
Intel® UHD Graphics |
| BIOS |
AMI 256Mbit SPI BIOS |
| Watchdog |
Software Programmable Supports 1~255 sec. System Reset |

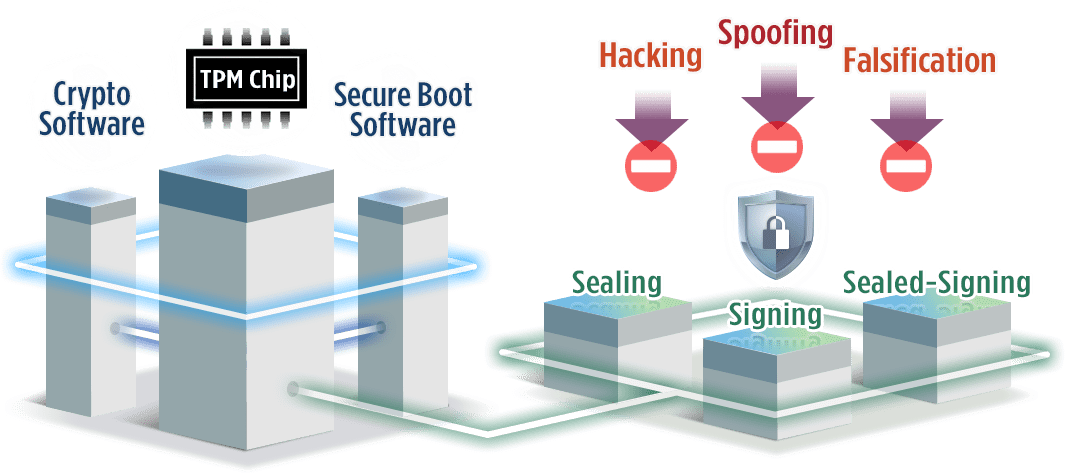

| TPM |
TPM 2.0 |
| Display Port |
1x DisplayPort (4096 x 2304@60Hz) |
| HDMI |
1x HDMI 1.4b (Resolution up to 3840×2160 @ 30 Hz) |
| Multiple Display |
Dual Display |
| M.2 |
1x M.2 B key-1 SATA/PCIE/USB 3.0 (2242/3042/3052) for Storage |
| SIM Socket |
2x External SIM socket |
| SSD/HDD |
1x Internal 2.5″ SATA HDD Bay (support H=9.5 mm) |
| M.2 |
1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0 signal for WiFi and Bluetooth) |

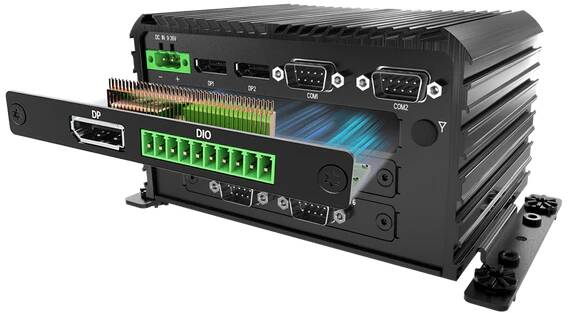

| Expansion Modules |
Optional:

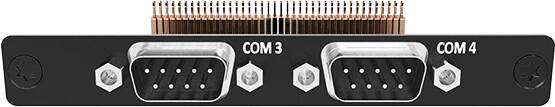

• 2-port COM module with Super I/O Chipset

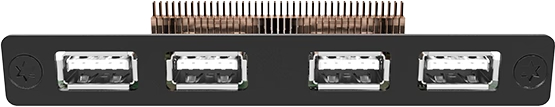

• 4-Port USB module with USB hub

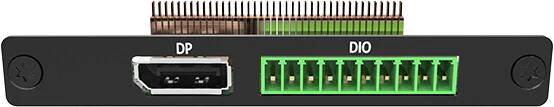

• 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated)

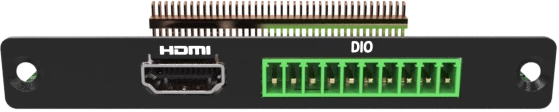

• 1-Port HDMI 2.0 and DIO (4 in / 4 out, Isolated) |
| Audio |
1x Mic-in, 1x Line-out |

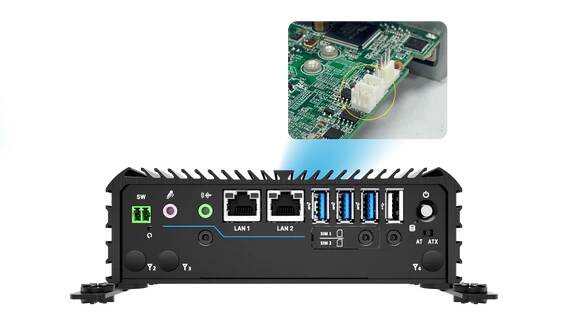

| CAN |
2x CAN 2.0 A/B 2-pin Internal header |
| COM |
2x RS-232/422/485 |
EDGEBoost I/O Bracket
(By mini PCIe interface, Proprietary Module) |
| 1x EDGEBoost I/O Bracket |
3x EDGEBoost I/O Bracket |
5x EDGEBoost I/O Bracket |
|
| LAN |
2x RJ45 (2.5 GbE) |
| USB |
3x USB 3.2 Gen 2 (10 Gbps)
1x USB 2.0 |
| Others |

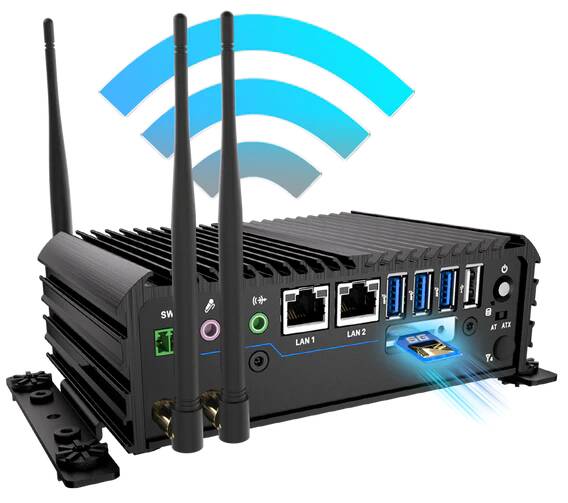

6x WiFi Antenna Holes

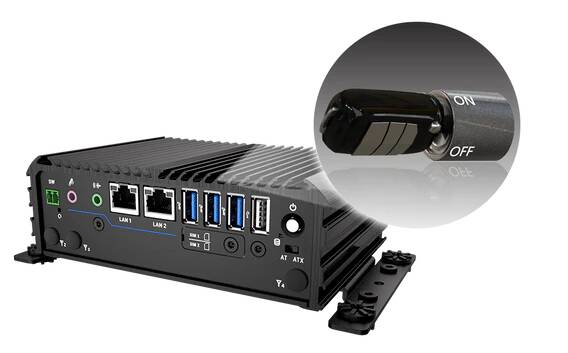

1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x Internal CMOS Battery Cable
1x 4-PIN FAN Connector
1x Ground Screw
1x HDD LED , 1x Reset |
| Windows |
Windows 10/11 |
| Linux |
Linux Ubuntu 22.04 |
| Power Adapter |
Optional AC/DC 12V/5A, 60W |
| Power Mode |
AT, ATX |
| Power Ignition Sensing |
Adjustable power ignition management can be achieved through BIOS and optional daughter board. |
| Power Supply Voltage |
9~36VDC |
| Power Connector |
3-pin Terminal Block |
| Power Protection |
OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection |

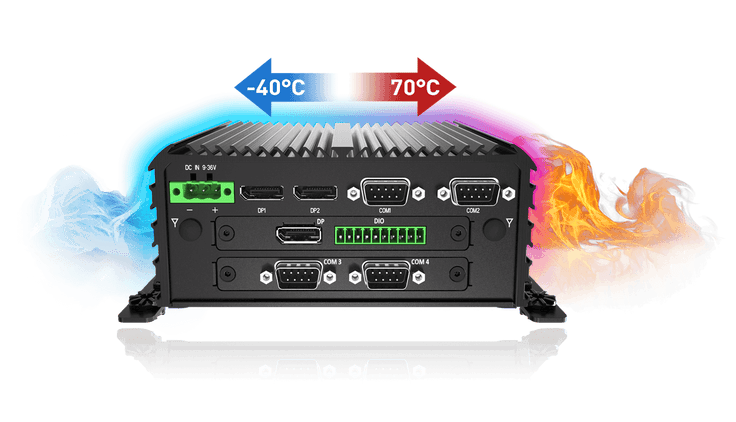

| Operating Temperature |
-40°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Relative Humidity |
10% to 95% (non-condensing) |
| Certification |
UL, CE, FCC Class A |
| Vibration |
With SSD: 5 Grms, 5 – 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 – 500 Hz, 0.5 hr/axis |
| Shock |
With SSD: 50G, half sine, 11ms |

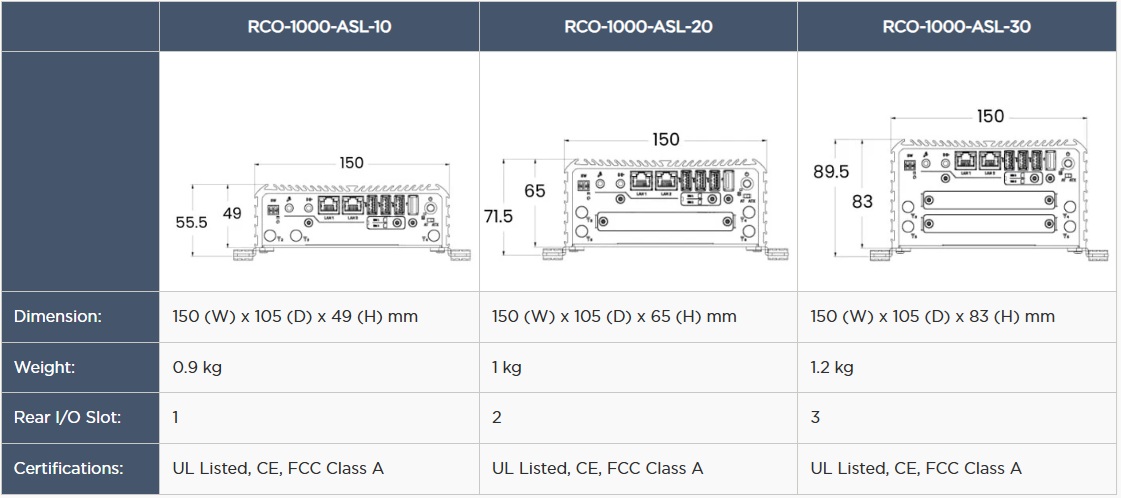

Dimensions
(W) x (D) x (H) mm |
| 150 x 105 x 49 mm |
150 x 105 x 65 mm |
150 x 105 x 83 mm |
|
| Weights |
|
| Construction |
Extruded Aluminum with Heavy Duty Metal |

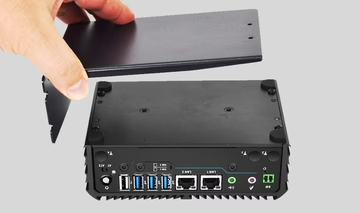

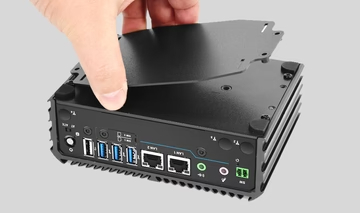

| Mounting Options |

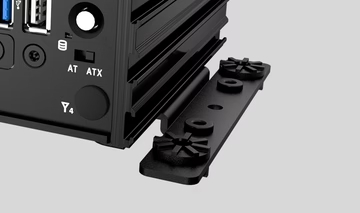

Wall Mounting

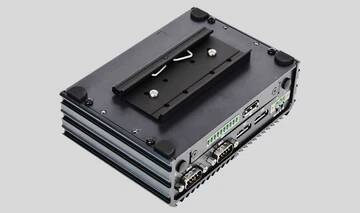

SIDE / VESA / DIN-Rail Mounting (Optional) |
