| Product SPEC |
| CPU |
Intel® Core™ Ultra CPU , Panther Lake-H: Ultra X7 358H and Ultra 5 338H |
| Memory |
Dual channel LPDDR5x-8533MHz, Onboard up to 64GB |
| Expansion |
1 * M.2 3042/3052 B-Key (PCIe+USB2.0, Support 4G LTE/5G NR) , with 1 * Nano SIM Card S lot
1 * M.2 2230 E-Key (PCIE+USB2.0 ) , Support Wifi7 +BlueTooth 5.4) |
| Graphics |
Intel® Arc™ B390/B370 GPU Peak 98~122TOPS(INT8) ,
Supports DirectX12.2, OpenGL 4.6 and OpenCL 3.0, H.264,H.265 (HEVC) and
AV1 Hardware Encode/Decode, VP9 Bitstream & Decoding,
max resolution up to 7680*4320@60Hz (HDMI 2.1 FRL) |
| NPU |
Intel® NPU Peak 47~50TOPS(INT8), Supports OpenVINO™ , WindowsML ，DirectML ，ONNX RT |
| IPU |
Intel® Image Processing Unit Version 7.5, Max Resolution (IPU) 16MP |
| Audio |
Realtek ALC 897 Audio HDA codec , Support Audio Line-Out+MIC, Dual channel 3W/8Ʊ Amplifier speaker |
| LAN |
6* Intel® I210AT Gig LAN Chip (RJ45,10/100/1000Mbps), Supports WOL |
| Storge |
1 * M.2 2280 M-Key (PCIeX4 Gen4, Support PCI E X4 NVMe) |

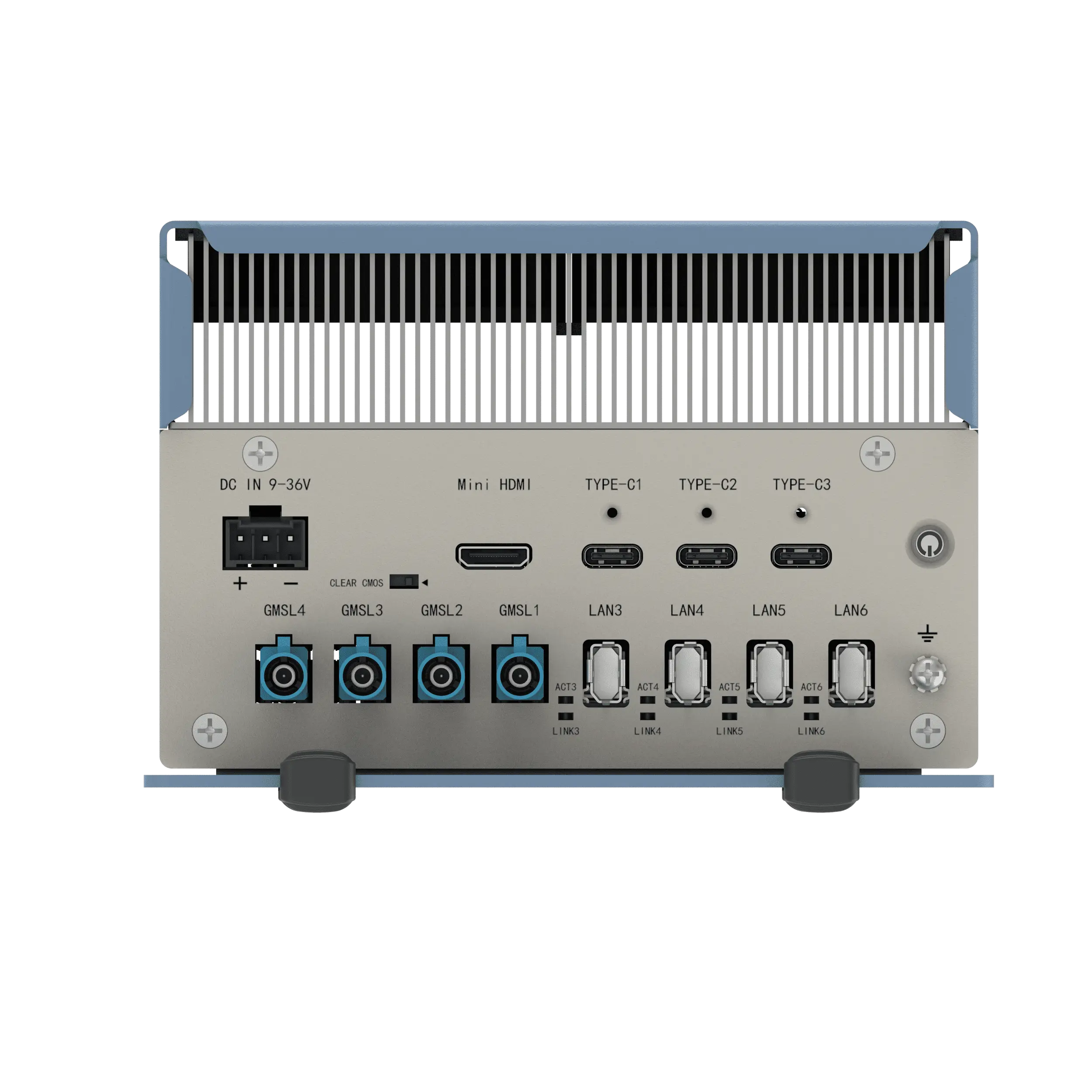

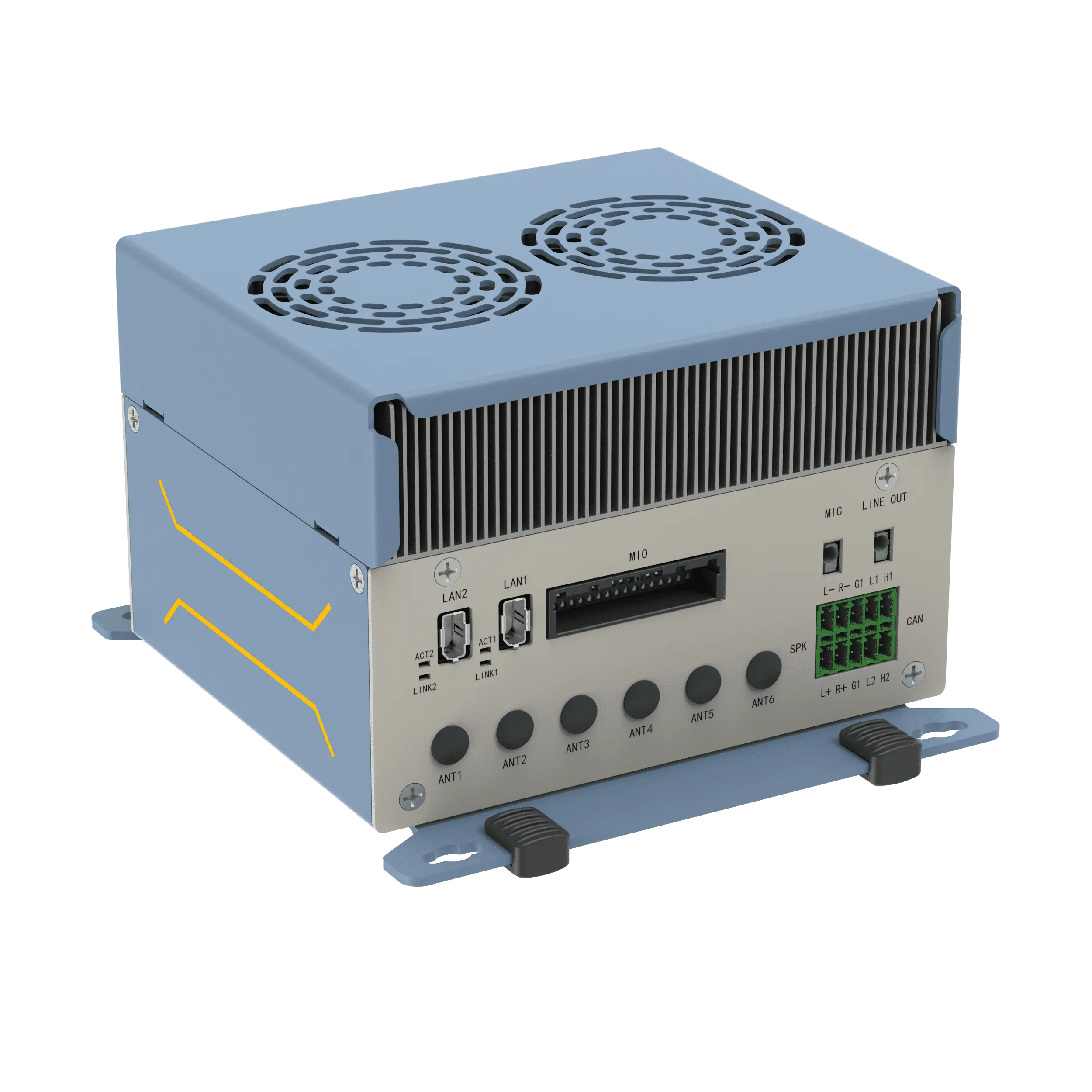

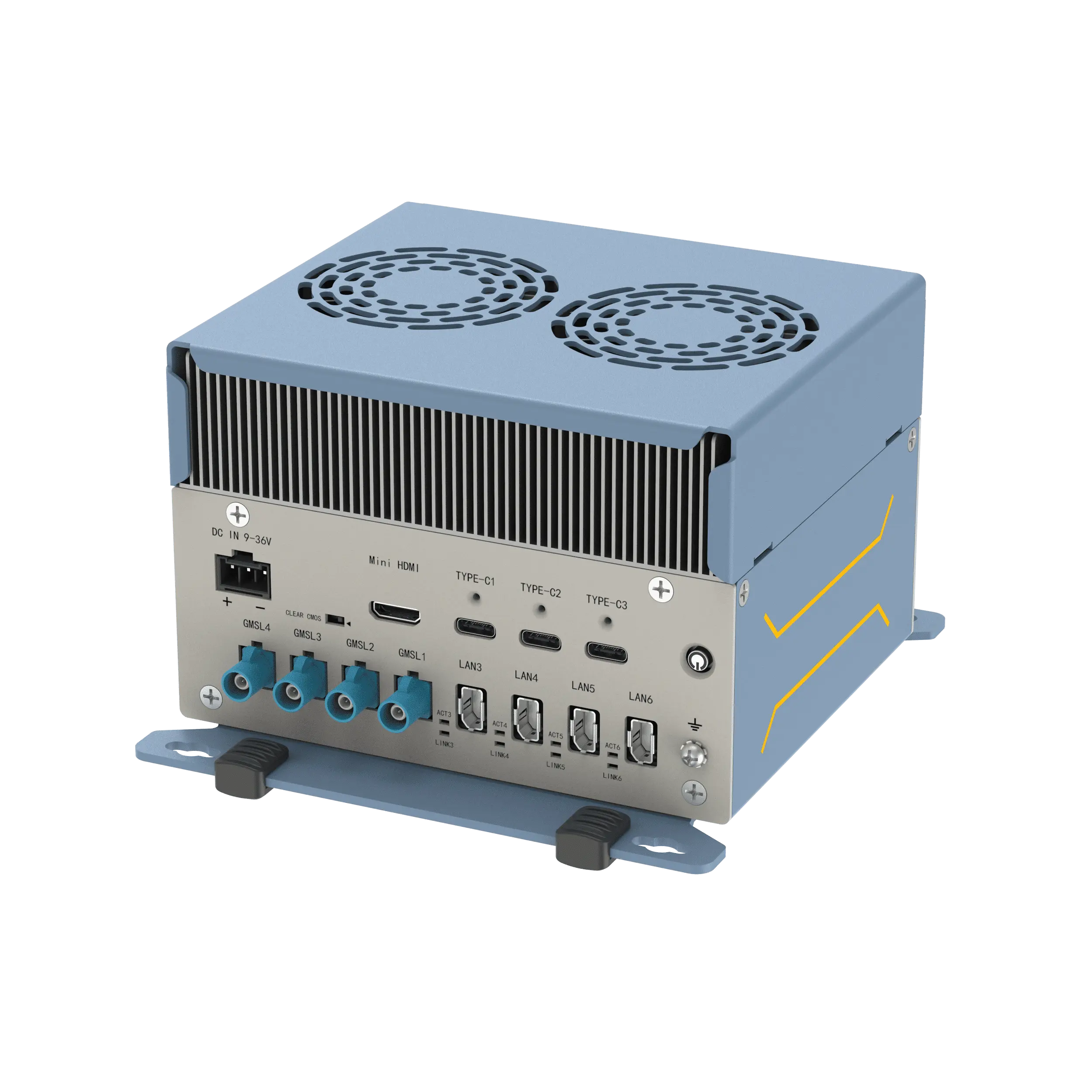

| I/O Interface |
6*Gig-LAN(IX61G2 w/LED); 1*Mini HDMI (Type C); 3*USB Type C(5*USB3.2+5*USB2.0); 4*GMSL2(Fakra);
2*16pin MIO(2*RS232/422/485+2*RS232, 8*Isolated DIO,2*I2C)；
1*Mic+1*Audio-out (3.5mm phone jack)
2*5pin terminal block (2*CAN2.0, Dual channel Amplifier speaker) |
| Control SW |
1* Power button w/LED, Clear Cmos dip |
| Power Supply |
DC-IN 9~36V wide power input ,3pin 3.96mm terminal block interface ,
with short circuit, over voltage and over current protection，TDP: TBD |
| OS Support |
Windows 10 64 bit, Windos 11 64 bit, Linux |
| Watchdog Timer |
Watchdog timeout programmable via software 1 to 255 second |

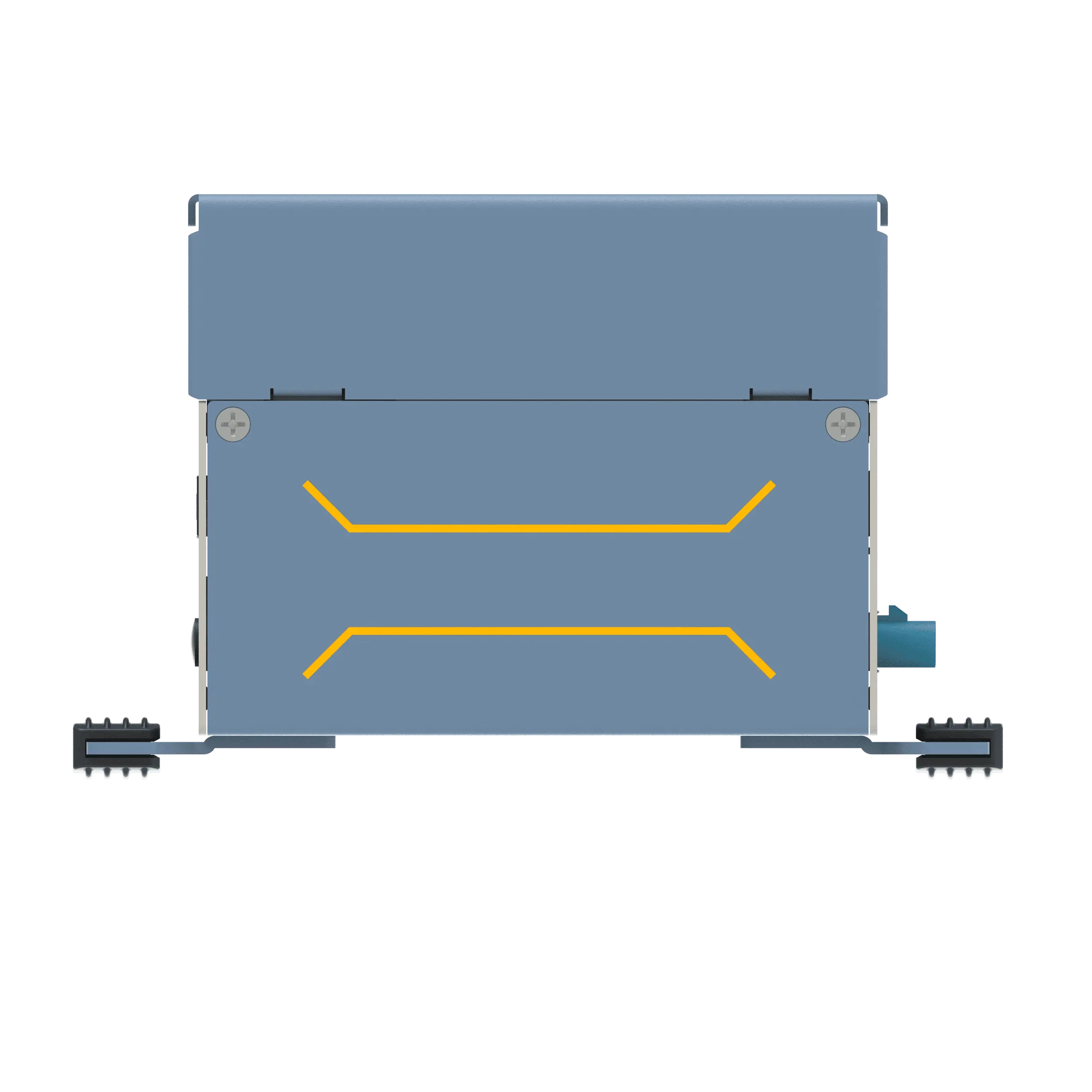

| Structure |
Aluminum extrusion thermal enclosure, SGCC frame; fan cooling and compact design |
| Color |
Silk Grey+Pastel Blue |
| Mounting |
Desktop Mounting with anti-vibration rubber pads |
| Dimension |
(L*W*H) ：Main box: 130*112.4*87mm；Including mounting bracket：135*145*94mm |
| Operating Temperature |
-20℃~50℃ , with airflow |
| Storage Temperature |
-40°C~85°C |
| Storage Humidity |
10~95%@40°C, Non-condensing |
| Vibration |
5grms/5~500Hz/random/in working (SSD); |
| Shock |
50g peak acceleration(11ms duration)(SSD); |
| Certification/EMC |
CE/FCC Class A |
