| Model |
DT8 |
| Core |
Processor |
Snapdragon SLM920 Octa-Core QCM6125 |
| GPU |
Qualcomm® Adreno™ 610 |
| RAM |
4GB; 8GB (optional) |
| ROM |
64GB; 128GB (optional) |

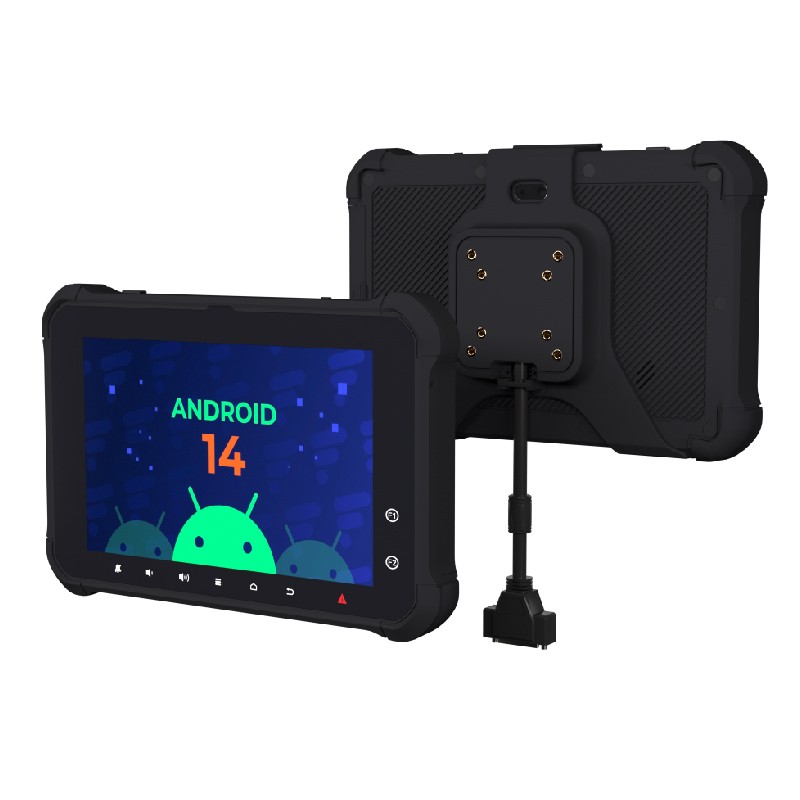

| OS |
Android 14 |

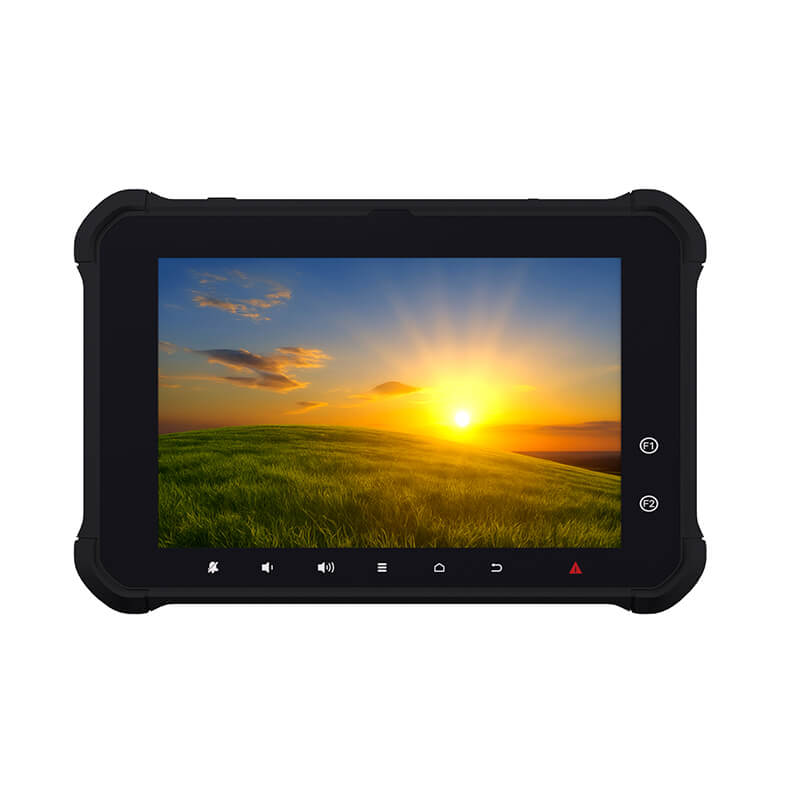

| Display |
LCD panel |
8-inch IPS, LED backlight |
| Resolutions |
1280 × 800; 1920 × 1200 (optional) |
| Brightness |
500 nits (typical); 700/1000 nits (optional) |
| Contrast Ratio |
800:1 |
| View Angle (°) |
85/85(L/R), 85/85(U/D) |
| Touch panel |
Capacitive 5-point multi-touch screen P-CAP touch technology |
| wireless |
WiFi |
IEEE 802.11 a/b/g/n /ac Standard
Supports 2.4GHz & 5GHz |
| Bluetooth |
Support Bluetooth 5.0 BLE |
| Cellular |
4G LTE |
| Positioning |
Support GPS/GLONASS/BEIDOU |
| Optional Function |
Camera |
5.0MP CMOS (front) |
| 8.0MP CMOS (rear) |
| NFC |
ISO/IEC 14443 A&B, MiFare® 1K/4K, FeliCa,
NFC Forum Type 1–5, ISO/IEC 15693 |
| MIC |
Internal microphone |
| Light Sensor |
Optional |
| G-sensor |
Built in |
| Gyroscope |
Built in |
| Speaker |
Output speaker: 8Ω/2W |
| Multimedia |
Video |
Support 4K 10bits VP9/H265/H264 |
| Support VC-1, MPEG-1/2/4, VP8, H.264 video decoder |
|
Audio |
MP3, Record |
| User Interface |

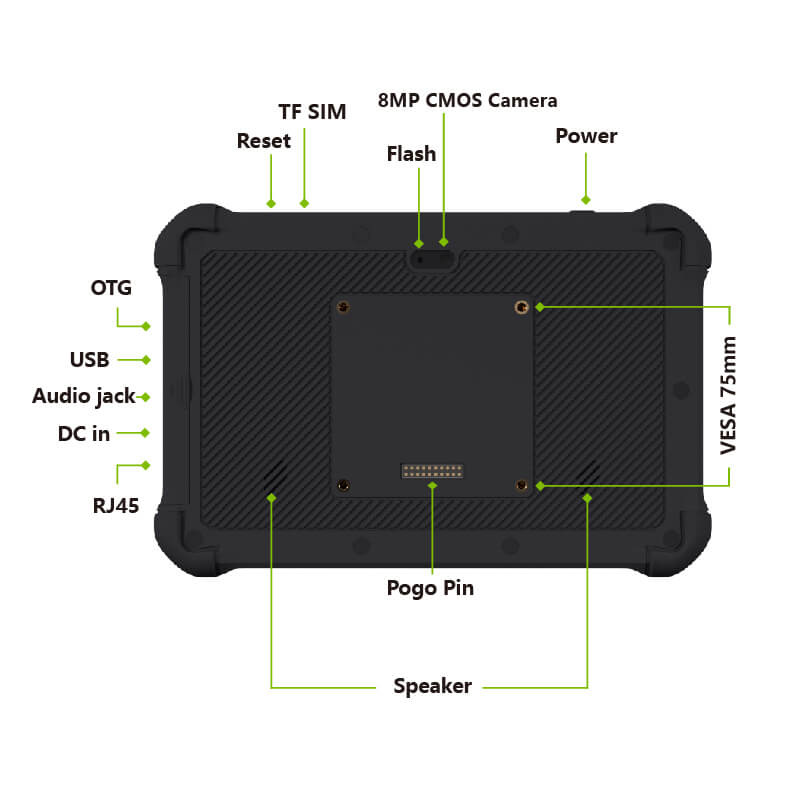

Onboard I/O ports |
1 x TF cardslot |
| 1 x SIM cardslot |
| 1 x RJ45(100 or 1000Mbps) |
| 1 x Reset Button |
| 1 x 3.5mm Audio Jack |
| 1 x USB host (type A) |
| 1 x OTG(MINI USB type) |
| 1 x Power Jack(9~36V) |

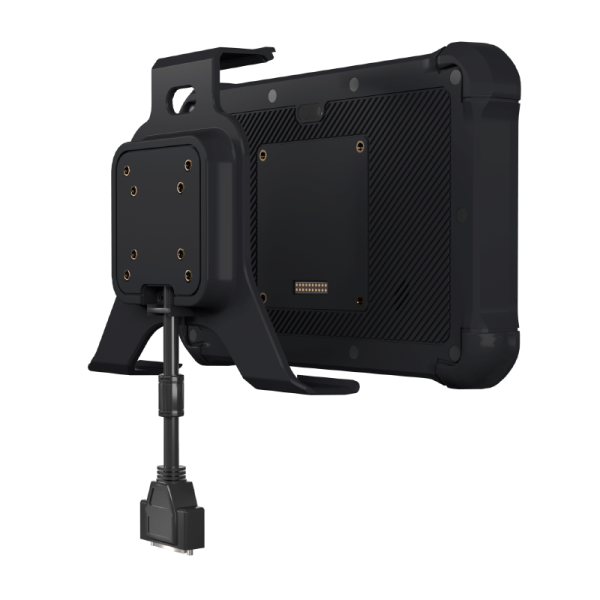

| 1 x POGO PIN (20 PIN) |

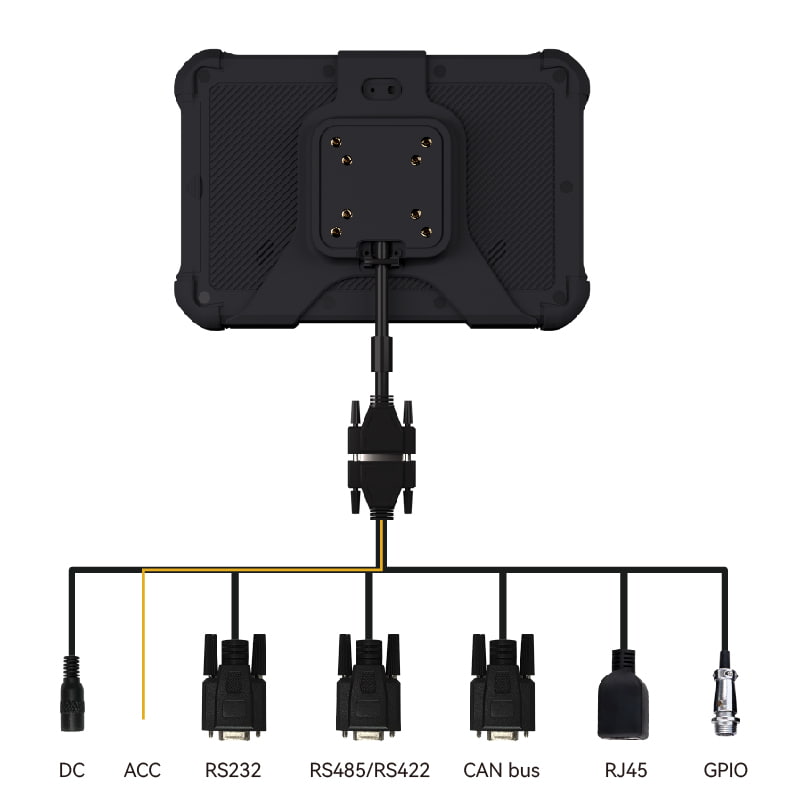

Extended
I/O ports
(extension cable) |
1 x ACC Input |
| 1 x Reverse Gear Trigger |
| 1 x CAN bus |
| 1 x USB Host |
| 4 x AHD Camera In |
| 1 x DC in (9~36V) |
| 1 x RS232 |
| 1 x RS422/RS485 |
| 1 x RJ45 |
| 1 x GPIO |

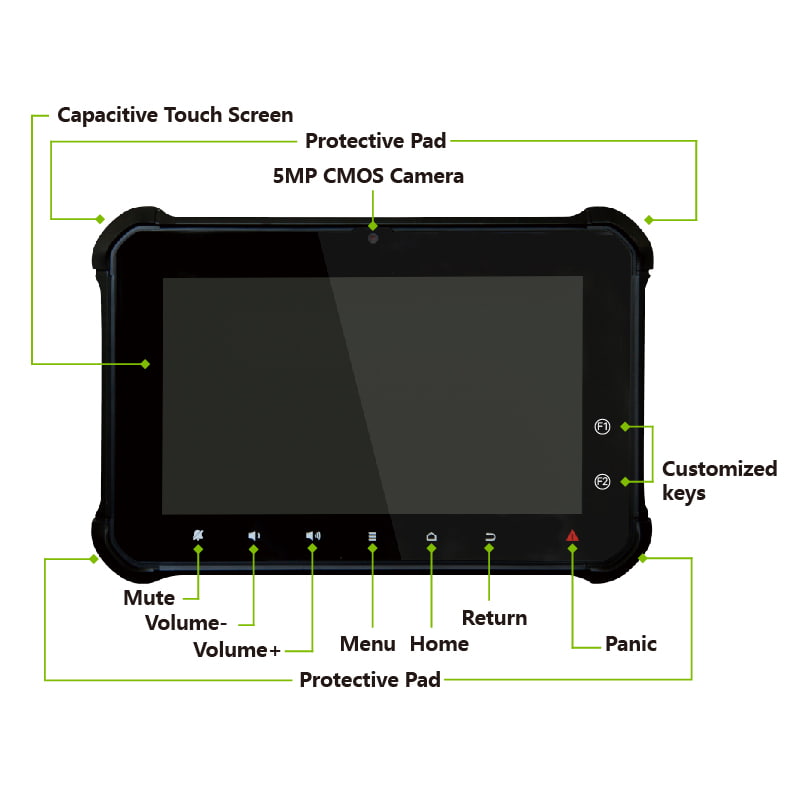

| Function Key |
Volume-, Volume+, Menu, Home,
Return, Panic, Power, Reset, F1, F2 |
| Power Indicator |
Red(charging), Green(full) |
| Power Supply |
DC In |
12V DC (9~36V) |
| Battery |
3.7V 5000mAh, Lithium-Polymer battery pack |
| Power Consumption |
Normal mode |
≤9W |
| Charging mode |
≤12.5W |
| Environment |
Operating Temp |
-20°C~70°C (w/o battery) |
| -10°C~60°C (w/ battery) |
| Storage Temp |
-35°C to +80°C (no battery) |
| IP Rating |
IP65 |
| Mechanical |
Dimensions |
238(L) x 160(W) x 31(H) mm |

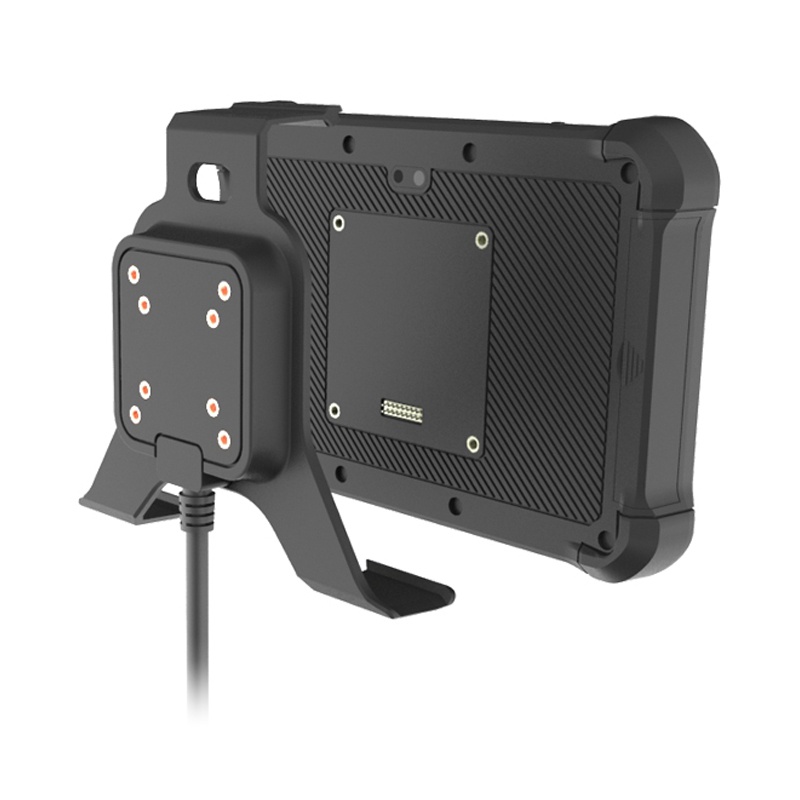

| Mount |
VESA, RAM |
